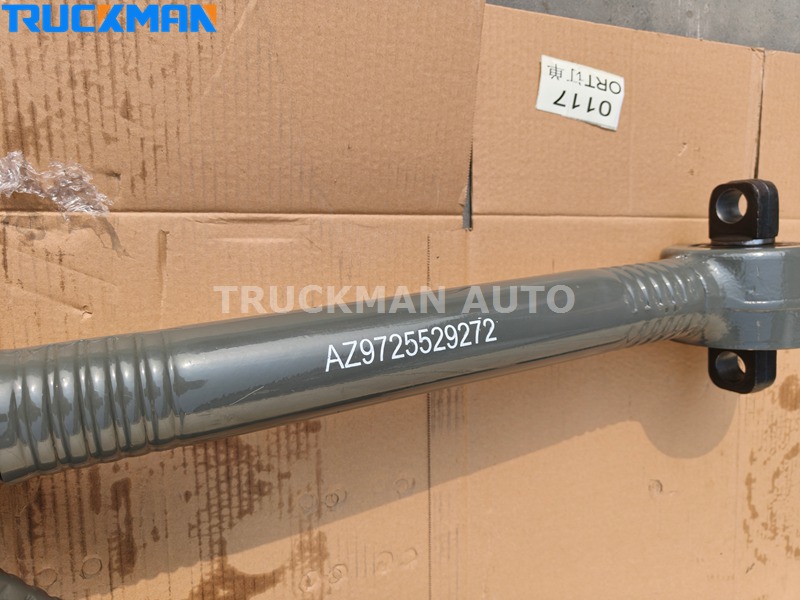

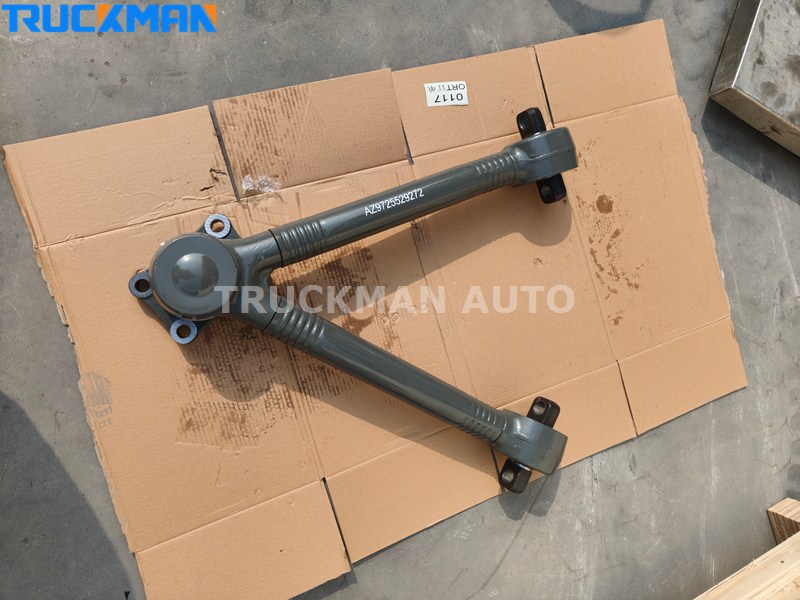

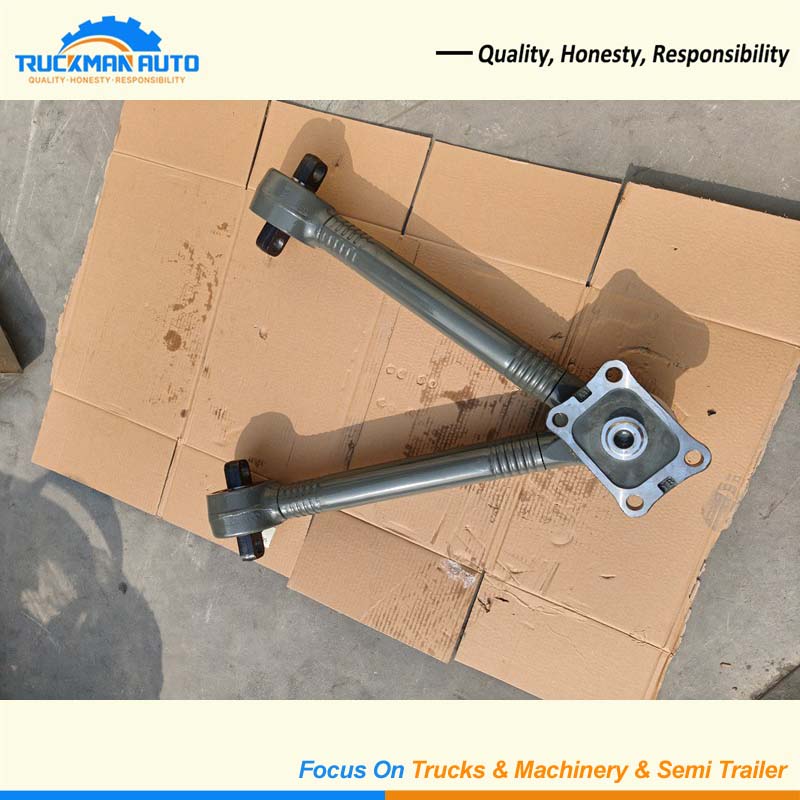

SINOTRUK HOWO V-type Thrust Rod AZ9725529272 For T7H T5G N7W

SINOTRUK HOWO V-type Thrust Rod Description

It connects the axle to the frame, forming a stable support link that limits the axle's forward and backward displacement along the driving direction. This ensures the alignment accuracy of the axle, gearbox, and drive shaft, preventing impact wear on transmission components due to misalignment. It can also counteract lateral axle misalignment, controlling lateral sway to within 3 millimeters when the vehicle is traveling on bumpy roads or making emergency lane changes. This prevents tire wear and vehicle drift caused by axle misalignment, reducing the risk of rollover under heavy loads.

SINOTRUK HOWO V-type Thrust Rod Specification

Product Name:V-type Thrust Rod

Application:SINOTRUK HOWO

Part Number:AZ9725529272

Material:Alloy Steel

SINOTRUK HOWO Oil Filter Material Details

It typically uses 42CrMo alloy structural steel, and undergoes quenching and high-temperature tempering treatment throughout, resulting in very high tensile and yield strengths. The buffer bushing uses hydrogenated nitrile rubber, which has a wide temperature range and strong corrosion resistance. The connecting pins are made of 35CrMo alloy steel, treated with rust prevention, and suitable for humid and dusty transportation environments.
