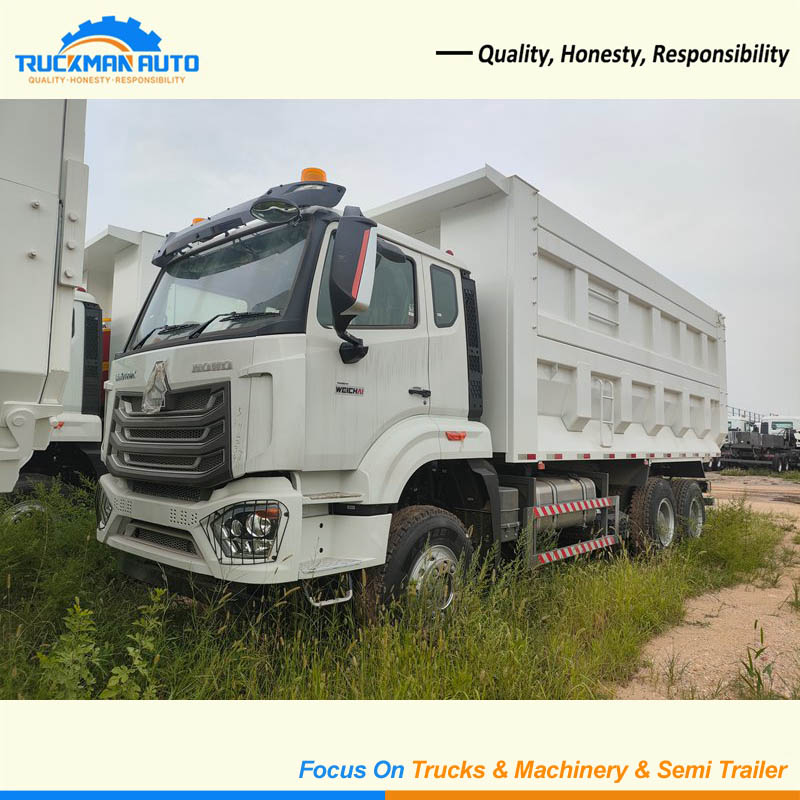

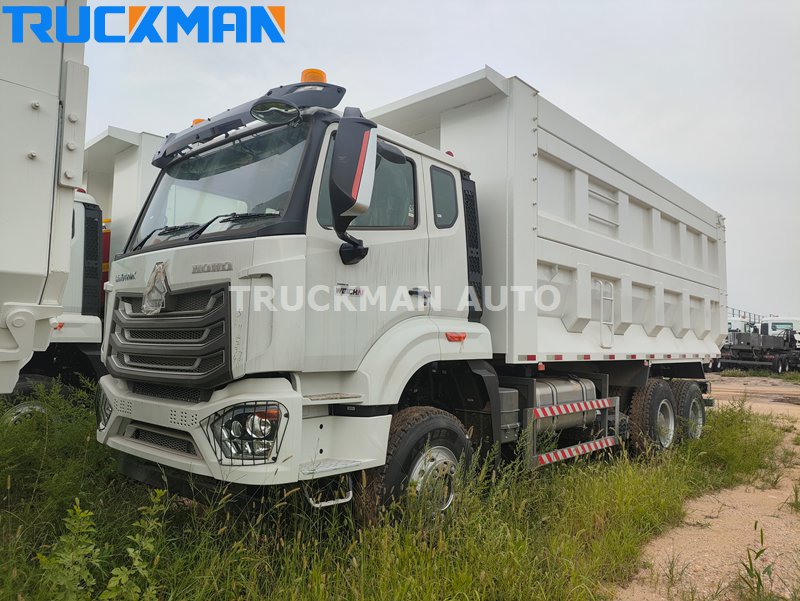

SINOTRUK HOWO NX 10 Wheels Tipping Truck For River Sand

About SINOTRUK HOWO NX 10 Wheels Tipping Truck

The SINOTRUK HOWO NX tipping truck is a heavy-duty tipping truck designed for urban slag transport, mining ore transport, and other cargo transportation. Equipped with a powerful WEICHAI 380HP engine, this tipping truck boasts ample power output to handle a variety of complex transport conditions. Its frame is constructed of high-strength steel, offering excellent load-bearing capacity and torsion resistance, ensuring stability and reliability even under heavy loads.

SINOTRUK HOWO NX 10 Wheels Tipping Truck Specification

Product Name: SINOTRUK HOWO NX 10 Wheels Tipping Truck

Engine: WP10.380E22, 380HP, Euro 2

Cabin: H77L, RHD with one Sleeper

Drive System: 6x4

Tires: 12.00R20, 10+1 PCS

Brake Control System: WABCO

Fuel Tank: 400

Gearbox: HW19710

The SINOTRUK HOWO NX 10 Wheels Tipping Truck specification only for your reference, we can manufacture other model basic your request.

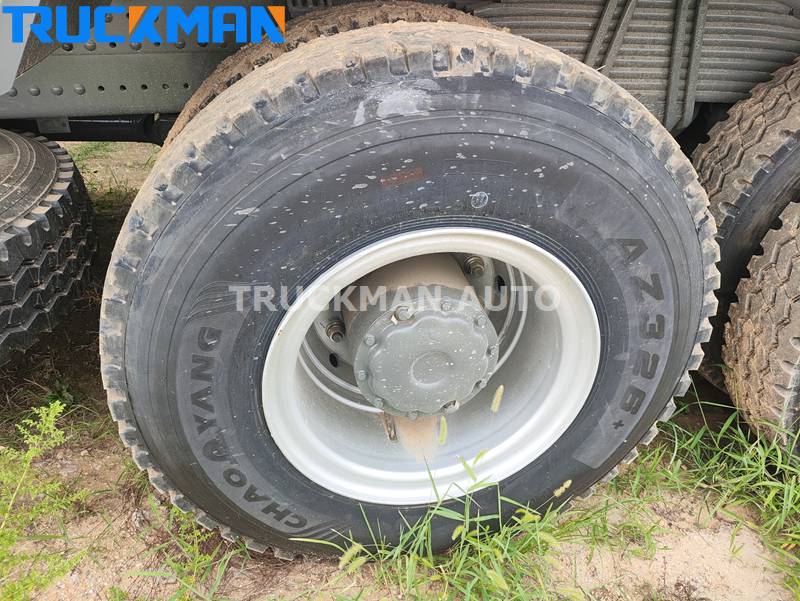

SINOTRUK HOWO NX 10 Wheels Tipping Truck Tire Introduction

With a strong load-bearing capacity, a 12-inch (approximately 305mm) cross-section width and a 20-inch rim diameter, the wide tread provides a large contact patch, making it suitable for heavy-duty vehicles. The wide tread design provides strong grip, enhancing friction with the ground and improving stability during acceleration, braking, and cornering, making it particularly suitable for complex road conditions. The special tread design improves drainage and enhances safety on slippery roads. It also provides excellent heat dissipation, slowing down tire thermal aging.

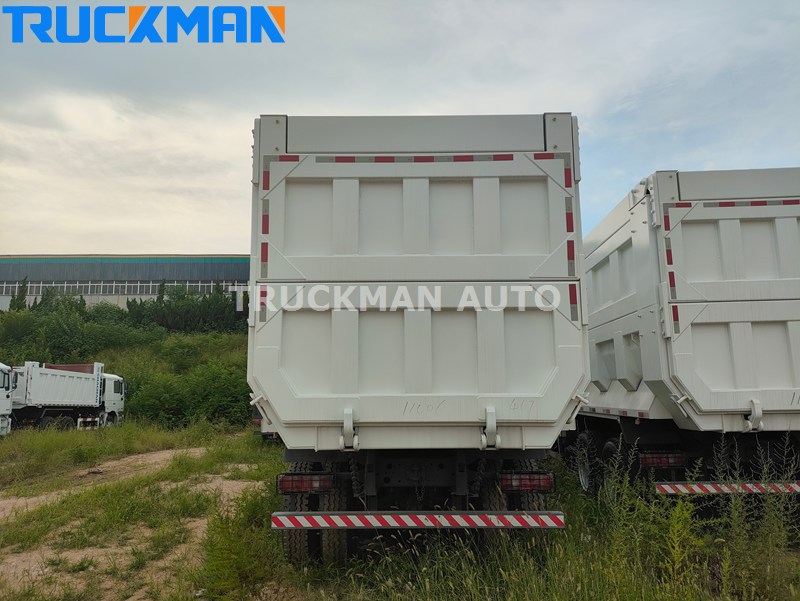

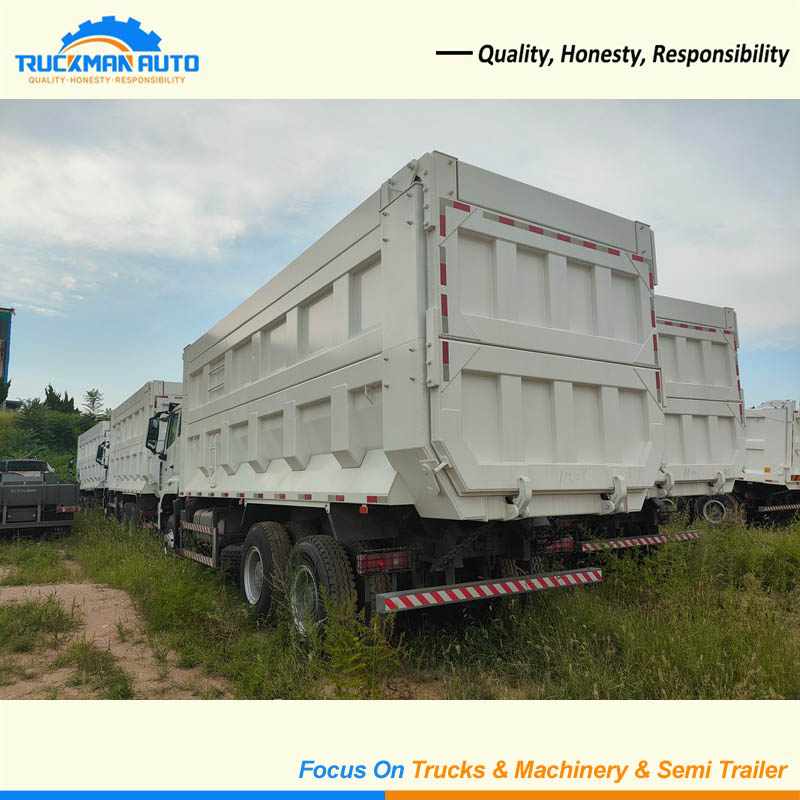

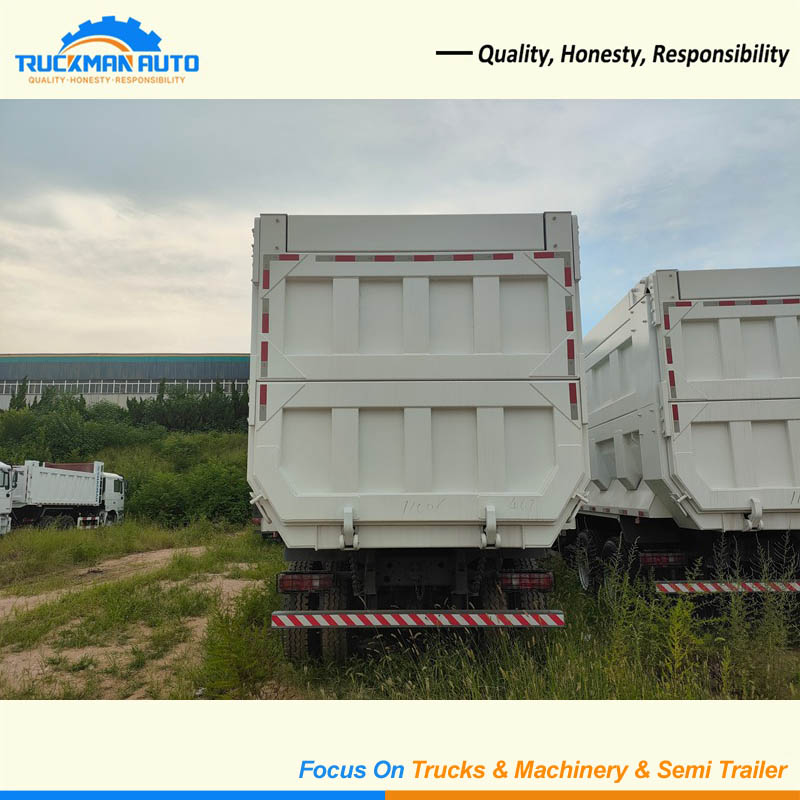

SINOTRUK HOWO NX 10 Wheels Tipping Truck Cargo Box Features

This vehicle uses a U-shaped cargo box. While it has a smaller capacity than a rectangular box, it offers greater efficiency during unloading. The U-shaped box is particularly well-suited for transporting cargo prone to residue, such as river sand and clay. Since the box's interior is free of dead corners, these types of cargo are less likely to remain during unloading. The U-shaped box also provides a more secure seal, preventing spillage and leakage during transport. Both U-shaped and rectangular boxes have their advantages and disadvantages, and we select the appropriate box shape based on the user's specific needs.

‌‌‌
