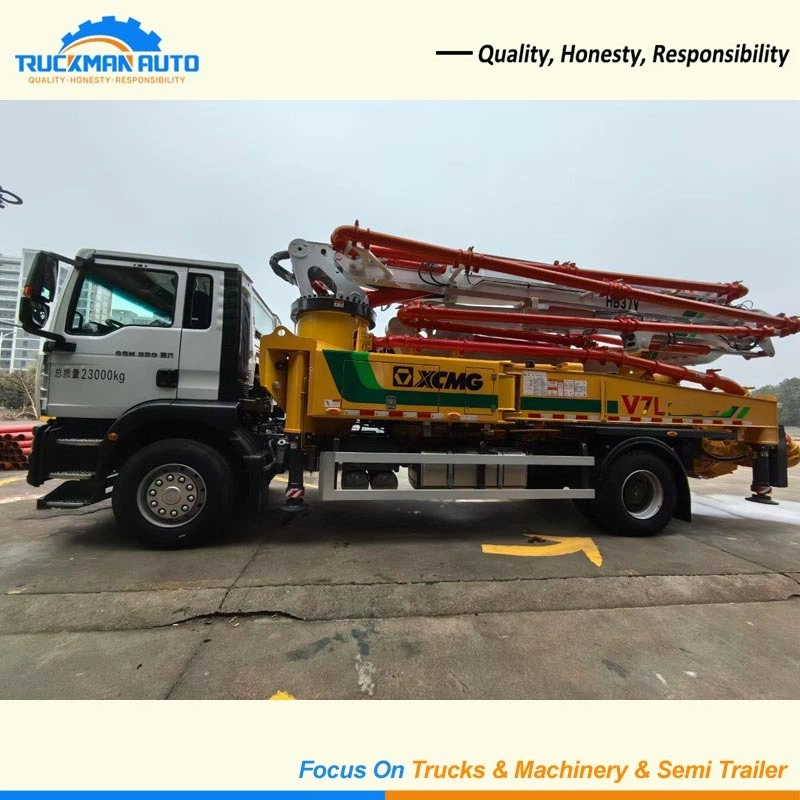

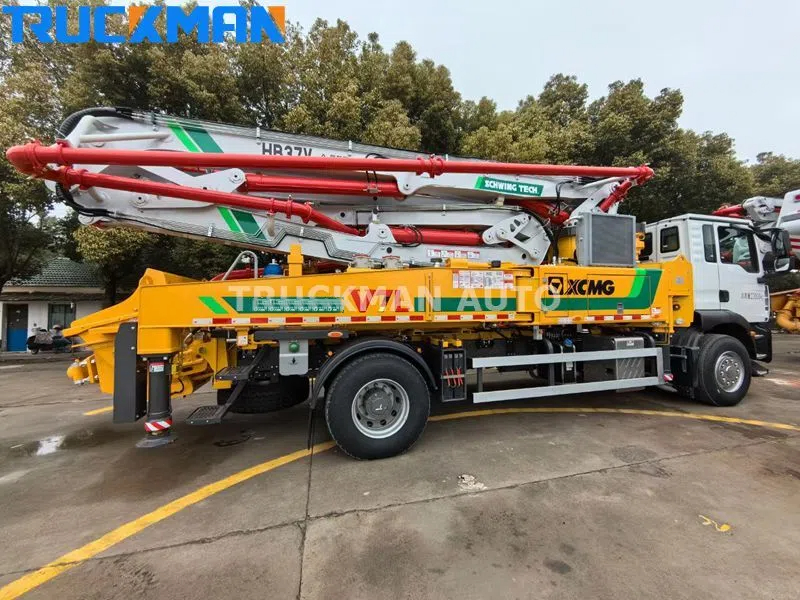

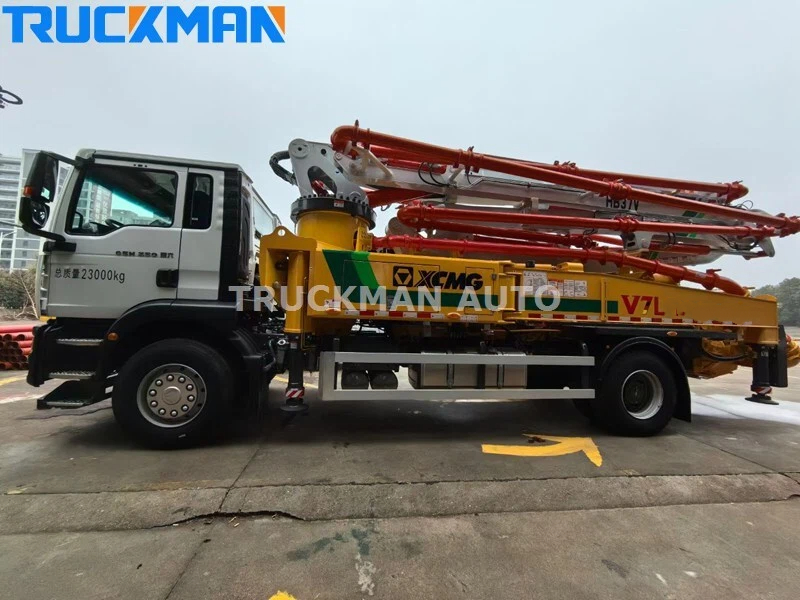

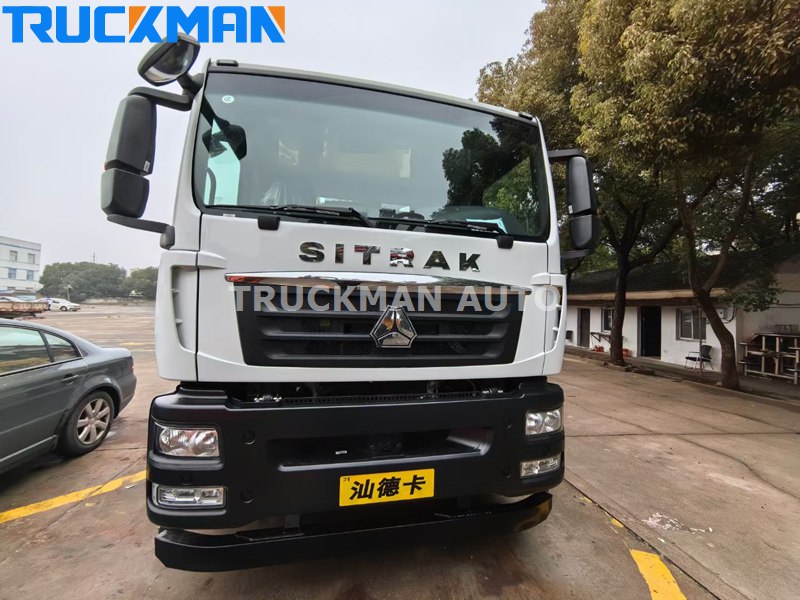

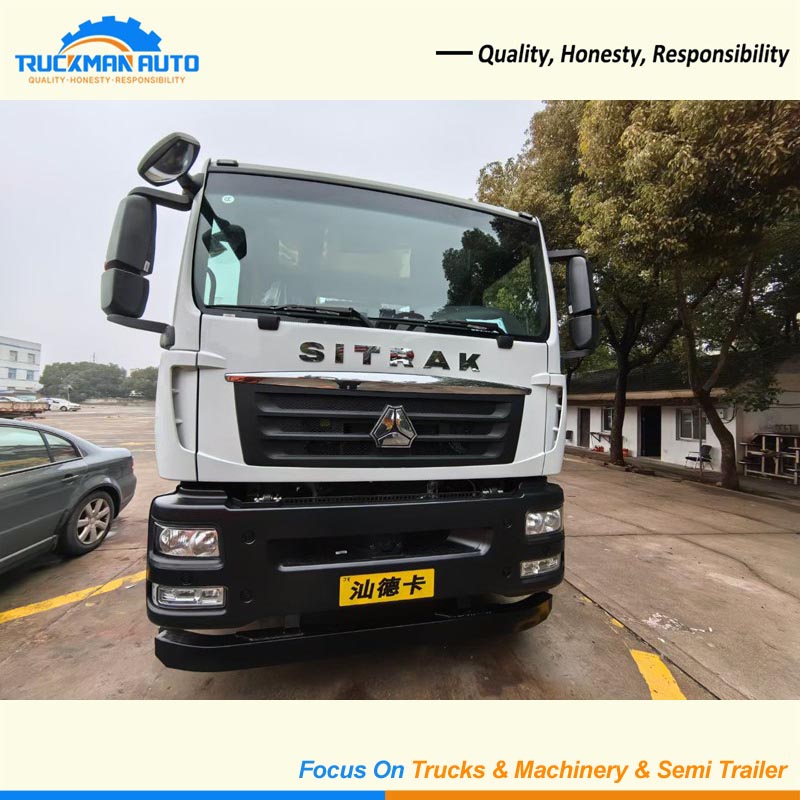

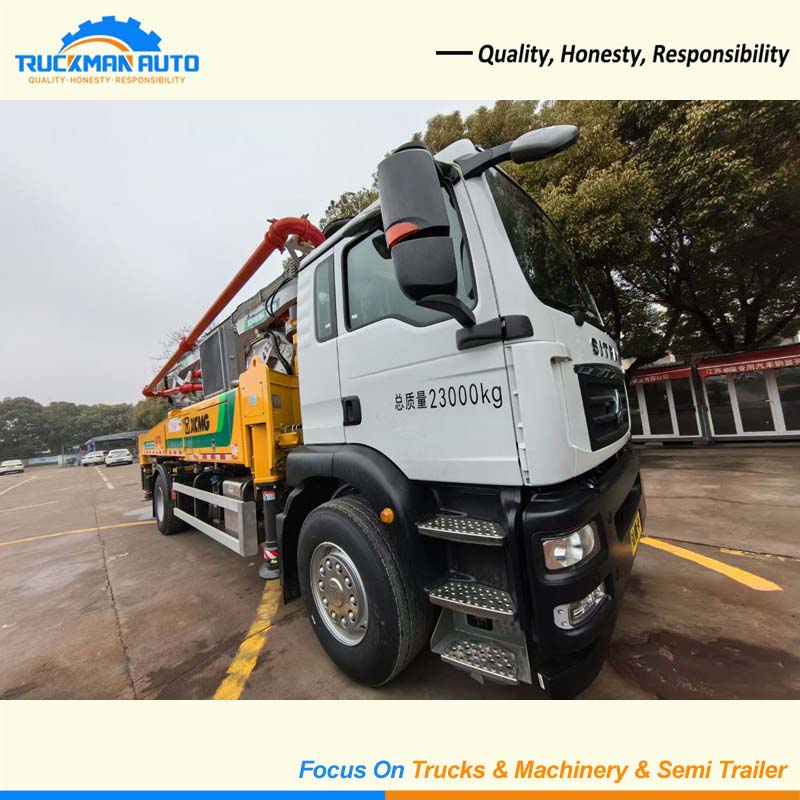

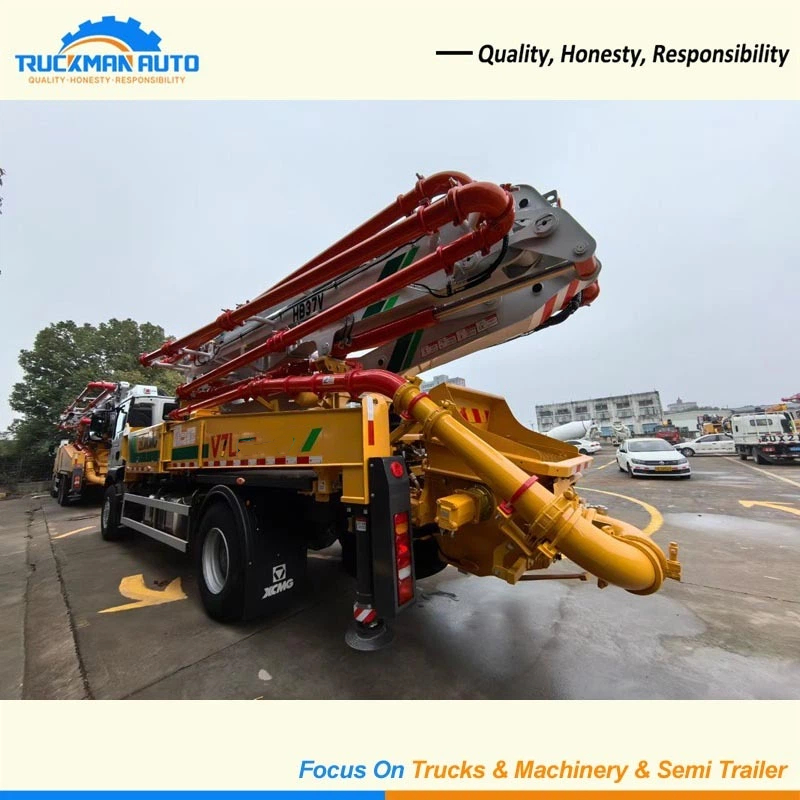

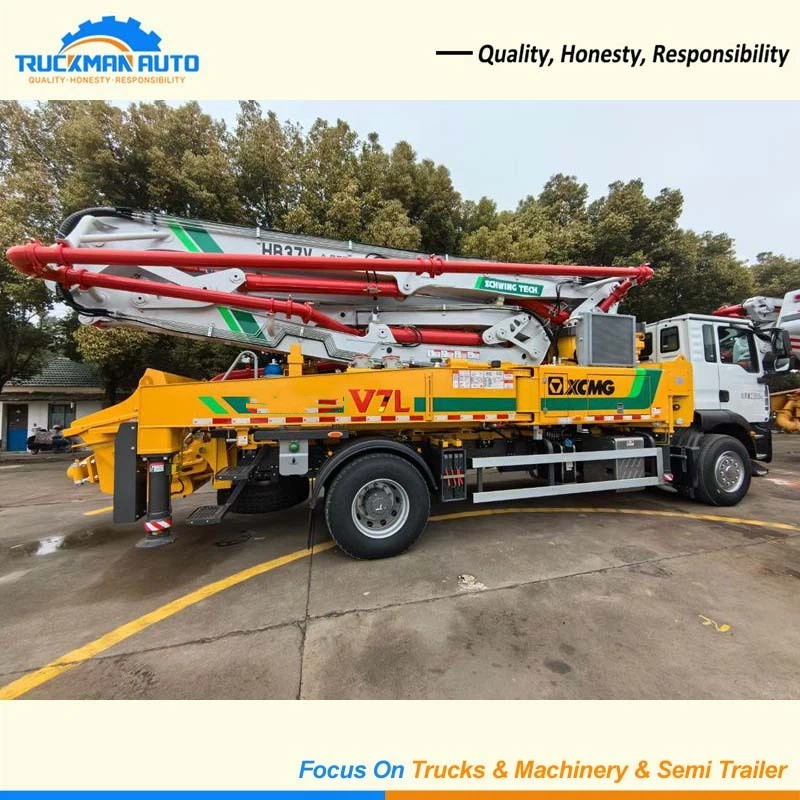

Heavy Duty SINOTRUK HOWO 37 Meters Pump Truck For Concrete Delivery

About SINOTRUK HOWO 37 Meters Pump Truck

The XCMG XS37 pump truck boasts a maximum pumping height of 37 meters, making it ideal for operations in confined spaces and delicate construction scenarios, such as pouring multi-story residential buildings. Its compact and flexible design adapts to complex working conditions, while precise concrete placement technology ensures operational efficiency and high concrete quality.

SINOTRUK HOWO 37 Meters Pump Truck Specification

Product Name: SINOTRUK HOWO 37 meters pump truck

Application: Constructions

Theoretical pumping pressure (Mpa) : 8.8

Theoretical pumping times: 31-33

Maximum net power (KW): 254

Wheelbase (mm): 5200

Weight (kg): 23000

Dimensions: 10030x2550x3750mm

The XCMG XS37 pump truck specification only for your reference, we can manufacture other model basic your request.

SINOTRUK HOWO 37 Meters Pump Truck Features

Utilizing German welding technology, the vehicle boasts a lightweight design, weighing less than 23 tons. Its SINOTRUK chassis and high-horsepower engine give it exceptional maneuverability, ensuring stable handling in all road conditions. With a height of 36.2 meters, a depth of 24.9 meters, and a minimum boom height of 7.5 meters, it can handle even the tightest of spaces. Its exceptionally low fuel consumption delivers significant cost savings, especially over extended periods of use.

SINOTRUK HOWO 37 Meters Pump Truck Advanced Technology

The high-precision hydraulic system and modular boom structure allow for flexible boom deployment. The first boom section can rotate 180 degrees, and the third section can rotate up to 230 degrees, enabling precise placement even in complex working conditions. The concrete delivery cylinder has a diameter of 200mm, with a theoretical pumping rate of 18 strokes per minute at low pressure and 27 strokes per minute at high pressure. It accommodates aggregates with a maximum particle size of 40mm, reducing the risk of pipe blockage.
