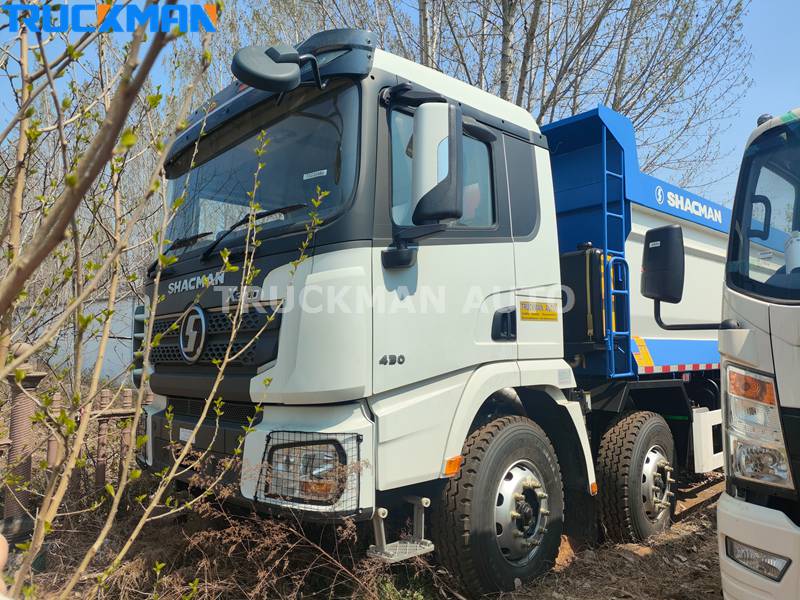

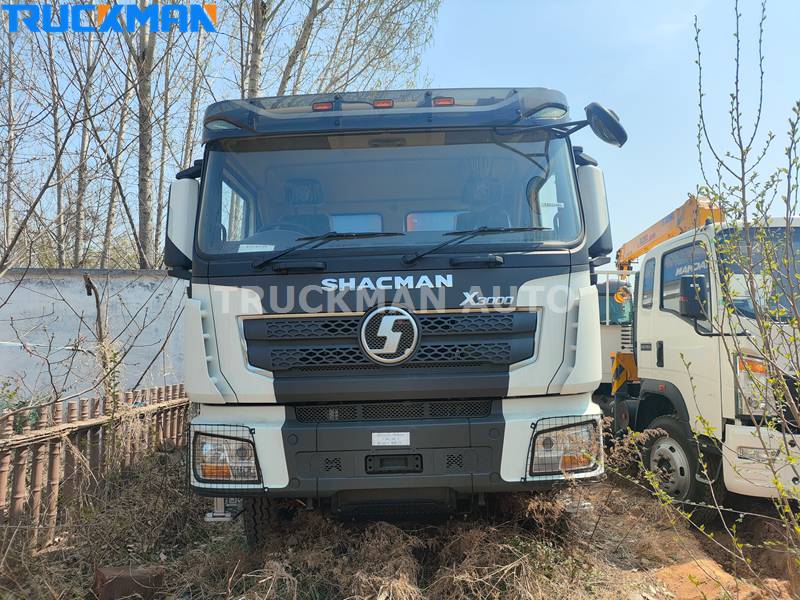

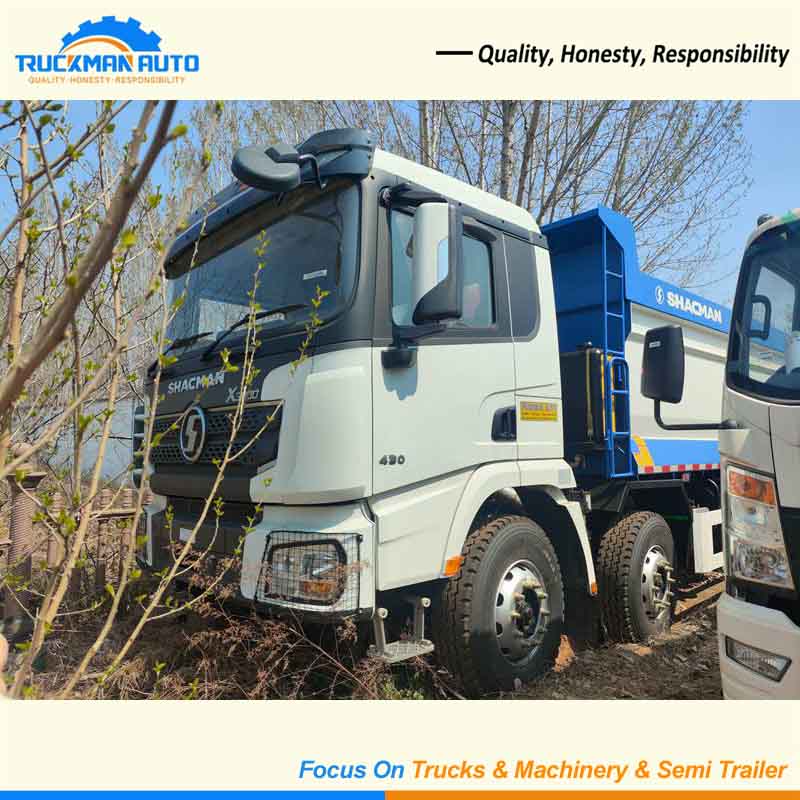

High Capacity SHACMAN X3000 430HP 8X4 U Shape Bucket Dump Truck For Guyana

Introduction



The SHACMAN X3000 430HP 8x4 Dump Truck is the premier solution for heavy earthwork and suburban infrastructure projects in Guyana.

Specifically configured for high-intensity operation, this model balances a high-torque Weichai powertrain with a specialized anti-stick U-shape cargo box and high load-bearing 13R22.5 tires.

By integrating a 400L large-capacity aluminum fuel tank and cast widened axles, it ensures maximum operational endurance and stability on waterlogged, unpaved construction sites.





What Is a SHACMAN X3000 8x4 Dump Truck?



This heavy-duty dump truck is built upon a reinforced double-layer chassis and has been specifically optimized for the high-volume transport of wet soil, sand, gravel, and heavy aggregates.

Customized specifically for the Guyanese market, this heavy-duty configuration places particular emphasis on powertrain reliability, material transport capacity, and chassis performance on soft-terrain road surfaces:

● Powered by a Weichai WP12 430hp engine, delivering exceptional torque for climbing;

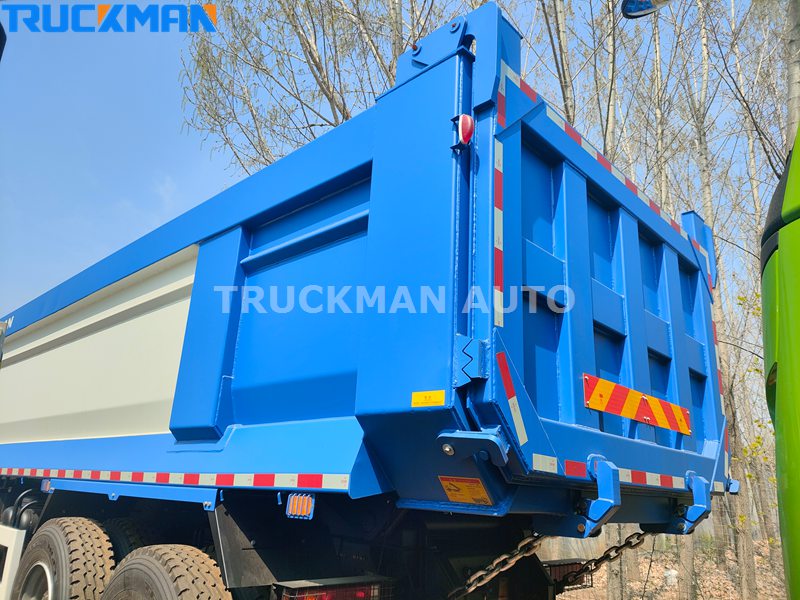

● Equipped with a 7600mm U-shaped cargo box made of high-strength, non-stick steel;

● Features 13R22.5 wide-tread engineering tires, designed specifically for soft-terrain conditions;

● Fitted with an iron-casing Fast transmission and MAN wide-track cast axles;

● Equipped with a 400-liter aluminum alloy fuel tank to ensure an extended operating range.

Even in the most demanding tropical construction environments, this vehicle maintains an exceptionally high level of reliability.





Technical Specifications



Feature	Value
Engine	WEICHAI WP12.430E201
Cab	X3000 cabin, one sleeper with A/C
Drive Type	8X4
Gearbox	FAST 12JS200T-B-Iron Shell With QH50 PTO, 12F&2R
Chassis	850x300(8+7)mm
Front Axle	MAN 9.5T
Rear Axle	16T MAN
Tire	13R22.5
Fuel Tank	400L Aluminum Alloy
Cargo Box	7.6m x 2.3m x 1.5m, U-shape



Why It Is Suited for Construction Projects in Guyana



1. Heavy-Duty Load Capacity and Traction Power

Construction sites and suburban road environments in Guyana typically involve:

● Steep excavation pit slopes

● Heavy earth loads in saturated conditions

● Unpaved laterite access roads

● Rigorous demands for high torque when pulling out of muddy sections

The WEICHAI 430-horsepower engine delivers immense low-speed torque, enabling the truck to effortlessly climb out of deep excavation pits even when fully loaded, while ensuring the engine always maintains ample power reserves.



2. Soft-Ground Adaptability and Vehicle Stability

Waterlogged construction sites in Guyana require vehicles capable of handling:

● Soft and muddy ground conditions

● Deep ruts created by the passage of heavy machinery

● High-angle lifting operations on rugged, uneven terrain

● Significant lateral shifts in the center of gravity under load

The 13R22.5 wide-tread tires increase the ground contact area, effectively preventing the vehicle from sinking into the mud; meanwhile, the MAN 16-ton wide-track cast axle provides a wider wheel track, ensuring the 7.6-meter cargo box remains stable during unloading operations. The U-shaped cargo box design guarantees complete and efficient discharge of materials.



3. Operational Endurance and Vehicle Durability

In a humid climate environment, high-intensity construction cycles impose the following requirements on vehicles:

● The ability to complete long periods of continuous operation without the need for mid-shift refueling

● A chassis possessing superior corrosion resistance

● A transmission featuring extremely high torsional strength

● Key components equipped with protective capabilities to withstand construction site debris and gravel

The 400-liter aluminum alloy fuel tank not only ensures the vehicle can operate continuously throughout the workday but also offers excellent rust-prevention properties. Furthermore, the cast-iron transmission housing provides the necessary structural rigidity to withstand the rigors of frequent shifting under heavy-load operating conditions.





Customized Guyana Specification Dump Truck VS Standard Dump Truck Comparison



For the construction of suburban infrastructure in Guyana, the custom-configured SHACMAN X3000 dump truck is perfectly adapted to the working conditions with sufficient power and stability.

Interested in a standard 8X4 dump truck? Please click here.



Export Case



Country: Guyana

Client Type: Infrastructure Contractor

Quantity: 1 Unit

Application: Earthwork and wet soil transport

Feedback: The U-shape cargo box and Hyva cylinder completely solved the issue of wet clay sticking to the truck bed. The widened axles and 13R22.5 tires provided excellent flotation, and no vehicles tipped over during site unloading.

For more information, please visit



FAQ About SHACMAN X3000 Dump Truck.



Q: Who are we?

A: We are TRUCKMAN AUTO,a manufacturer with years of experience in research and development, design, and manufacturing in China



Q: How long is the delivery time for shipping of SHACMAN 30 Tons Dump Truck?

A: It depends on the order quantity, and generally takes 15-40 days.



Q: How do we ensure quality of SHACMAN X3000 430HP Dump Truck?

A: Our products use only genuine, original components from well-known brands and come with official brand warranties. Furthermore, we conduct thorough factory inspections on every product before it leaves the factory.



Q: What’s our MOQ of SHACMAN X3000 Tipper Truck?

A: For most products, the MOQ is 1 unit.
