SINOTRUCK HOWO NX 371HP 10 Wheels 20000 Liters Sprinkler Truck

About SINOTRUCK HOWO NX 371HP Sprinkler Truck

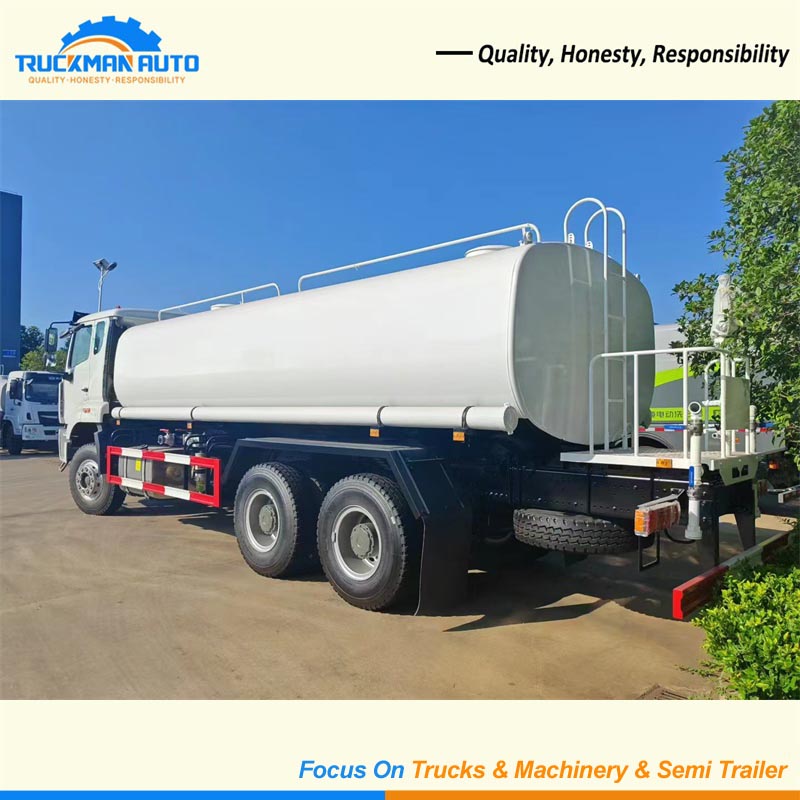

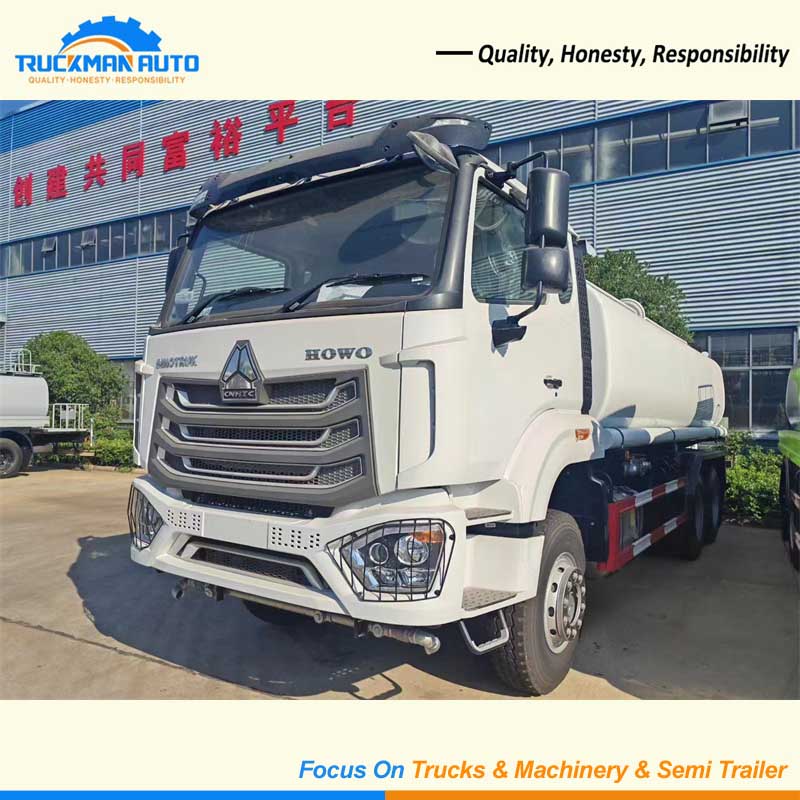

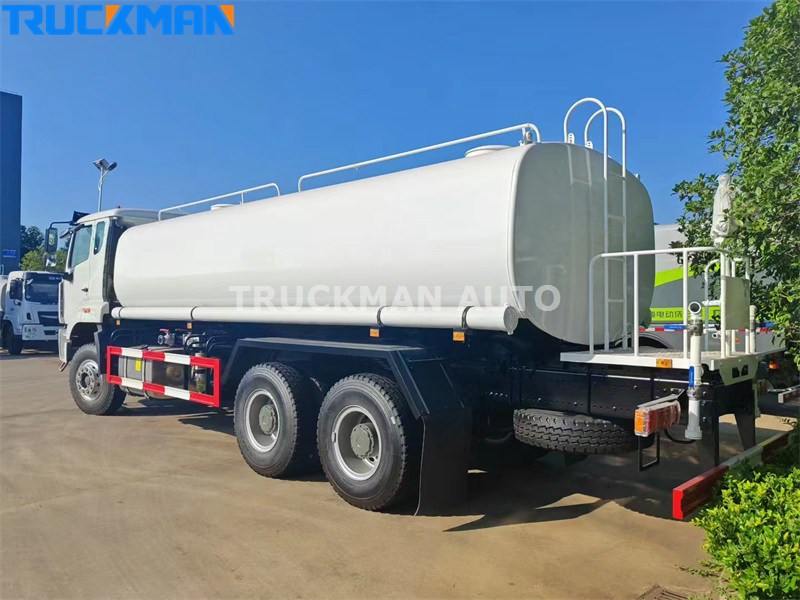

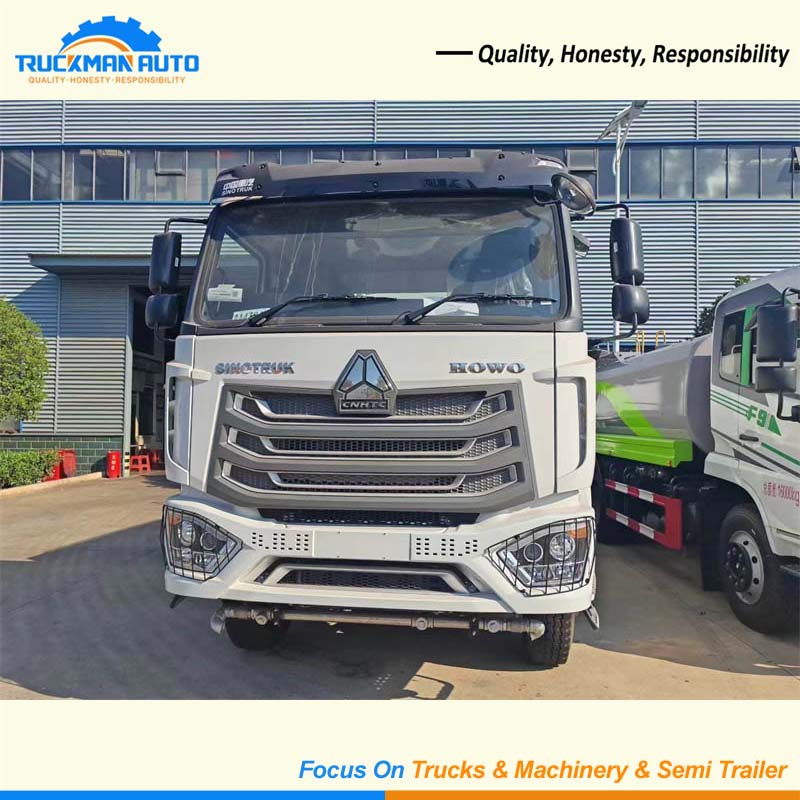

The SINOTRUCK sprinkler truck's headlights are equipped with protective covers to prevent damage from flying stones and extend their service life. Guardrails are installed on both sides of the truck to enhance the protection of truck components. Integral fenders effectively block splashing mud and water. A ladder is installed at the rear of the tank, allowing workers to climb up to the top of the tank and observe its condition. The upper guardrail of the tank is installed above the tank and serves as a fall protection when climbing. It also provides a foothold for easy access.

SINOTRUCK HOWO NX 371HP 10 Wheels Sprinkler Truck Specification

Product Name: SINOTRUCK HOWO NX 371HP 10 Wheels 20000 Liters Sprinkler Truck

Application: water transportation

Engine: WD615.47, 371HP. Euro 2

Cabin: With one bed, A/C

Gearbox: 10 forward and 2 reverse gear

Tire: 12.00R20, 10+1 pcs

Color: Optional

Fuel Tank: 300L

SINOTRUCK HOWO NX 371HP 10 Wheels 20000 Liters Sprinkler Truck only for your reference, we can manufacture other water truck basic your request.

SINOTRUCK HOWO NX 371HP 20000 Liters Sprinkler Truck Nozzle

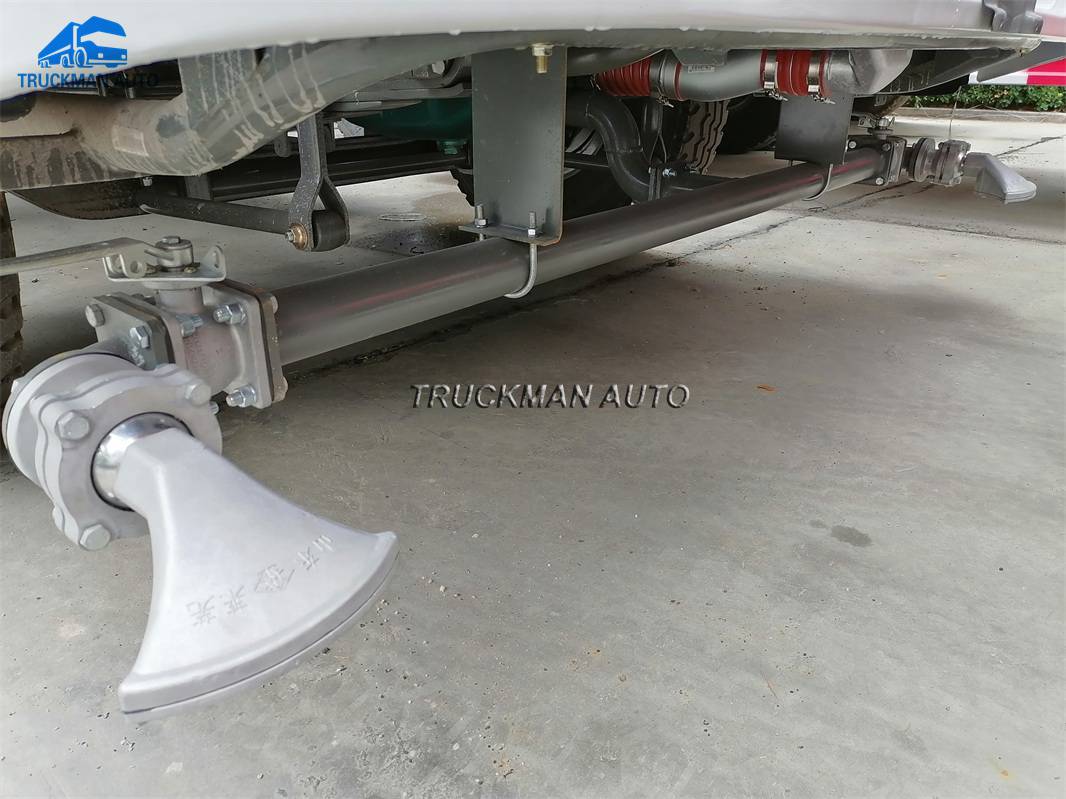

The HOWO sprinkler truck is equipped with a front nozzle with a flat, narrow outlet. When water flows through, it forms a thin, wide, fan-shaped water curtain. This effectively washes and cleans the road surface even at low speeds. The water flow covers a wide area and has greater pressure, keeping the water close to the ground, like a "water shovel" installed under the sprinkler truck. Sprinkler trucks equipped with this "duckbill" have proven to be more water-efficient and time-saving than conventional sanitation sprinkler trucks, achieving better road washing results and efficiency.

SINOTRUCK 20000 Liters Sprinkler Truck Water Pump

The most crucial component of a sprinkler truck's piping system is the water pump. The pump contains an impeller and lacks a built-in cooling system. Dissipation is primarily achieved by the water in the tank flowing into and out of the pump. If the pump is empty and idling, high temperatures and high pressures can result, leading to leakage from the bearing seals. This can cause water in the pump's water jacket to enter the gearbox, damaging the gears within. Avoid starting the water pump unless the sprinkler truck is using the front or rear spray modes (irregular running is not permitted, regardless of whether water is present). When not in use, first depress the clutch, then turn off the power take-off pneumatic switch to stop the pump, and then shut off the engine.
