20000L Sprinkler Truck SINOTRUK HOWO 6x4 Water Transport Truck For Land

About 20000L Sprinkler Truck SINOTRUK HOWO 6x4 Water Transport Truck

The 20000L sprinkler truck is equipped with a WEICHAI brand Euro II diesel engine and a HW19710 10-speed manual transmission. It is powerful and fuel-efficient. The 20000L sprinkler truck is equipped with front flush, rear sprinkler, side spray, 360° rotating high-pressure water cannon and an operating table, and supports multi-mode adjustment such as heavy rain/light rain/mist/drizzle.

20000L Sprinkler Truck SINOTRUK HOWO 6x4 Water Transport Truck Specification

Engine: WP12.400E201, 400HP. Euro 2

Cabin: HW76,with one bed, A/C

Gearbox: HW19710+HW70, 10F & 2R, with PTO, manual gearbox

Drive Axle: HC16,2x16000kg,

Tire: 315/80R22.5, tubeless tyre, 10+1 pcs

Tank Body: 15000L-25000L

Fuel Tank: 400L

20000L Sprinkler Truck SINOTRUK HOWO 6x4 Water Transport Truck specification only for your reference, we can manufacture other model trucks basic your request.

20000L Sprinkler Truck SINOTRUK HOWO 6x4 Water Transport Truck Tank Body

The tank volume of HOWO 6x4 water transport truck is usually to meet the needs of transporting large amounts of water. Common volumes are 5000 liters, 10000 liters, 15000 liters, etc., or even larger. Larger volumes can improve the transportation efficiency of water tankers and reduce the number of transportations. A wave-breaking plate will be installed at a certain interval inside the tank. The function of the wave-breaking plate is to reduce the fluctuation and impact of the liquid inside the tank, improve the driving stability of the water tanker, and prevent the water in the tank from having excessive impact on the front and rear heads during emergency braking or emergency acceleration.

20000L Sprinkler Truck SINOTRUK HOWO 6x4 Water Transport Truck Operation Table

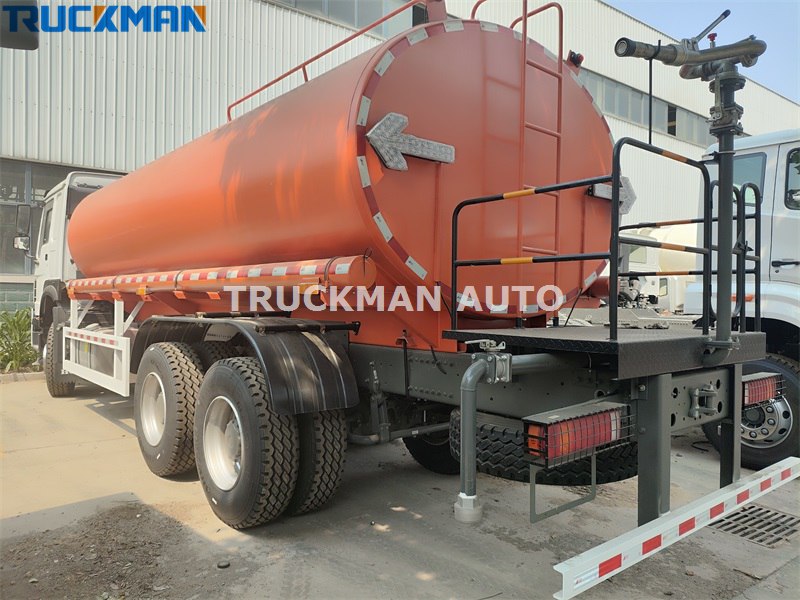

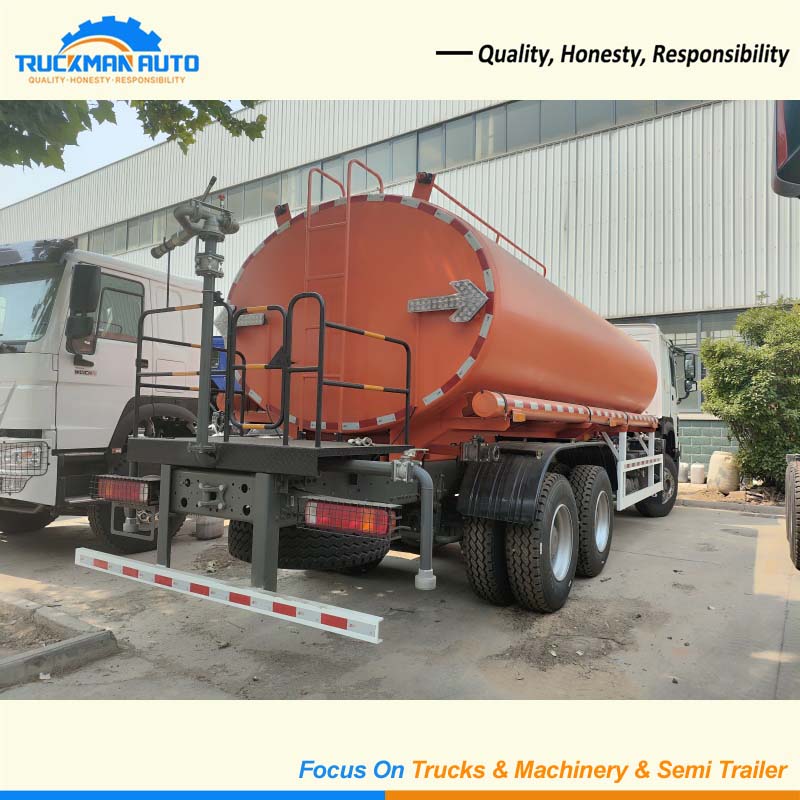

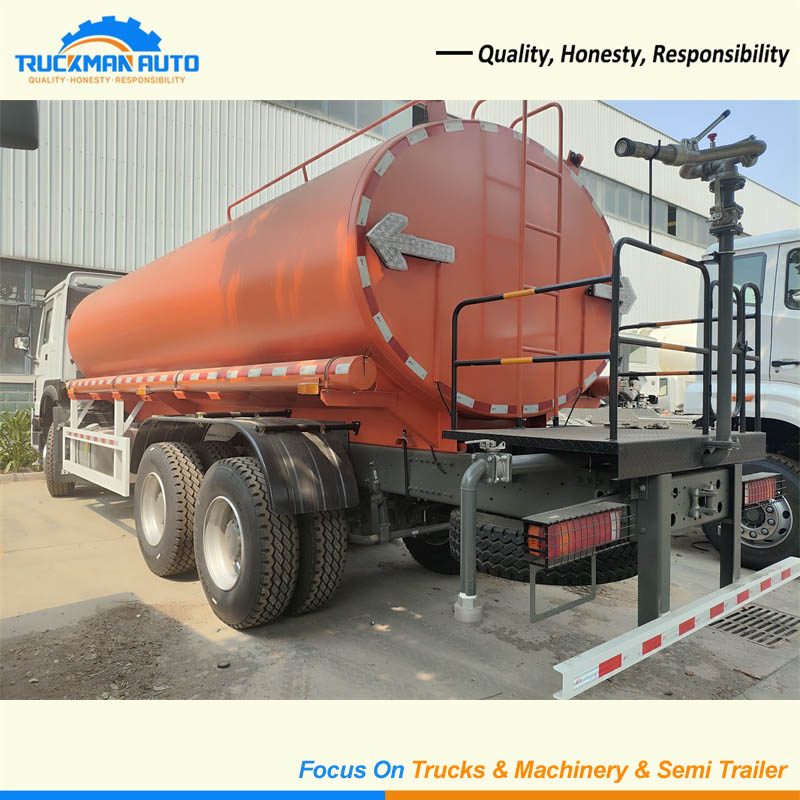

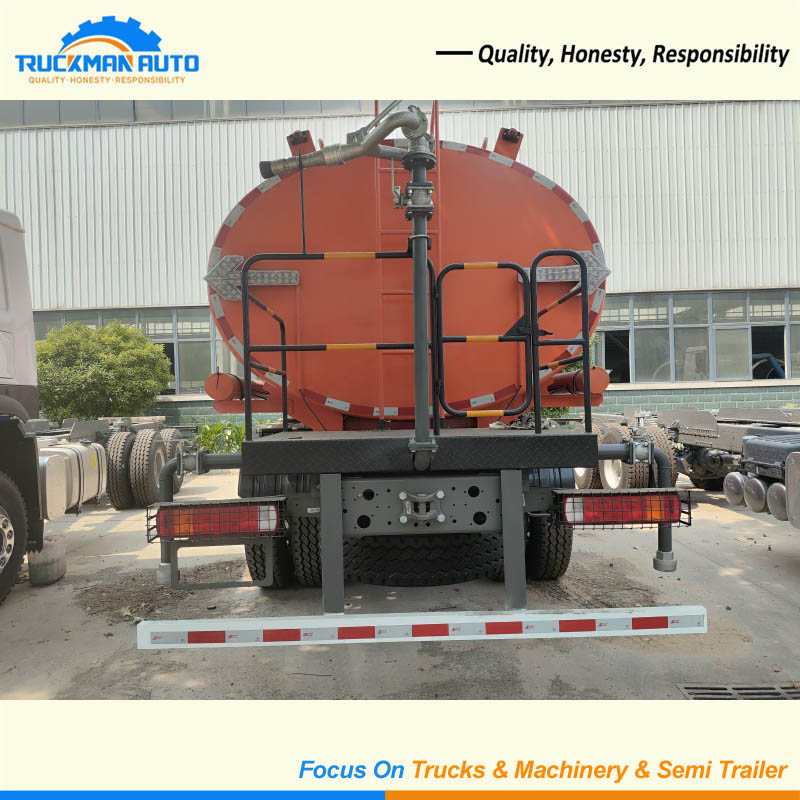

HOWO water transport truck is equipped with a rear operating console and a high-pressure water gun. The operator can complete various operating functions of the water tank truck on the operating console without having to walk back and forth in different positions of the vehicle, such as starting, stopping, and speed regulation of the water pump, filling and discharging water from the water tank, and controlling the water cannon, etc., which improves the convenience and work efficiency of the user's operation.
