6X4 SINOTRUK HOWO NX 380HP Truck With Crane For Ghana

About 6X4 SINOTRUK HOWO NX 380HP Truck With Crane

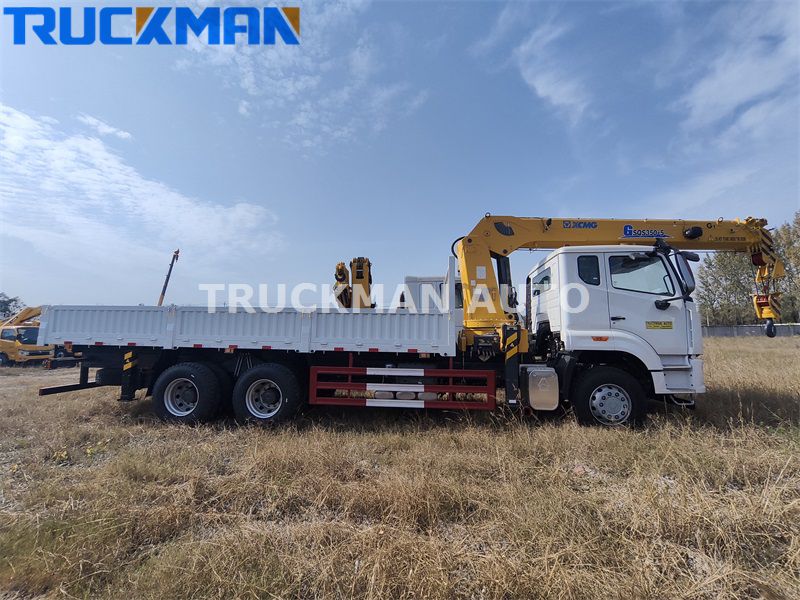

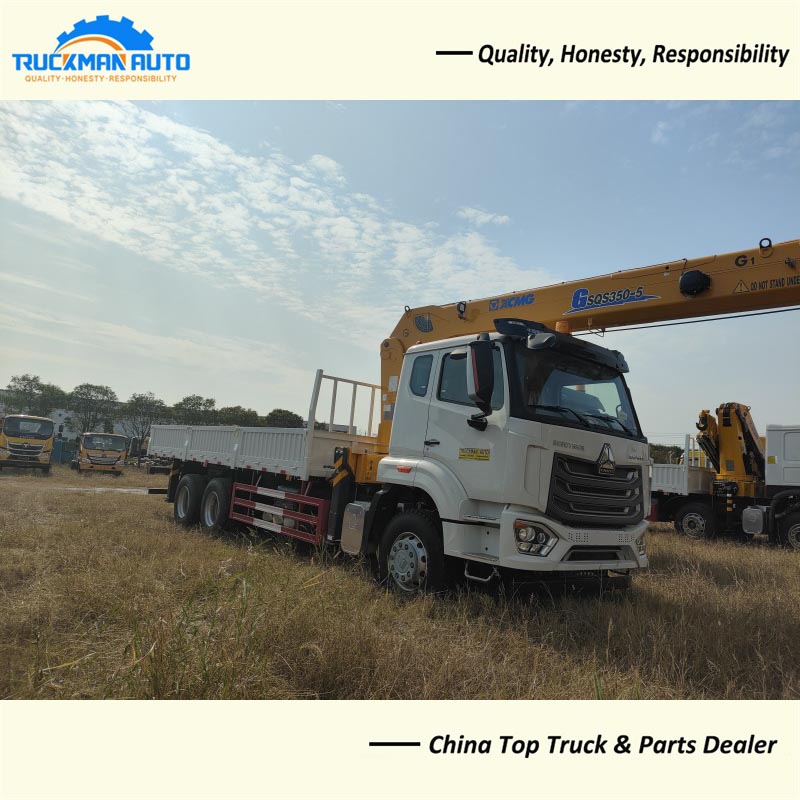

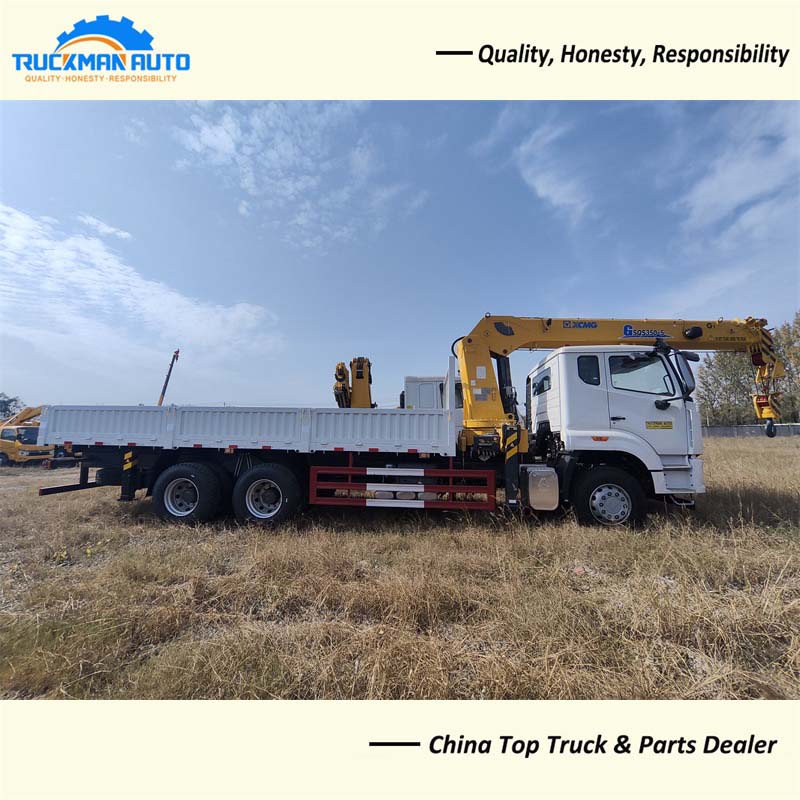

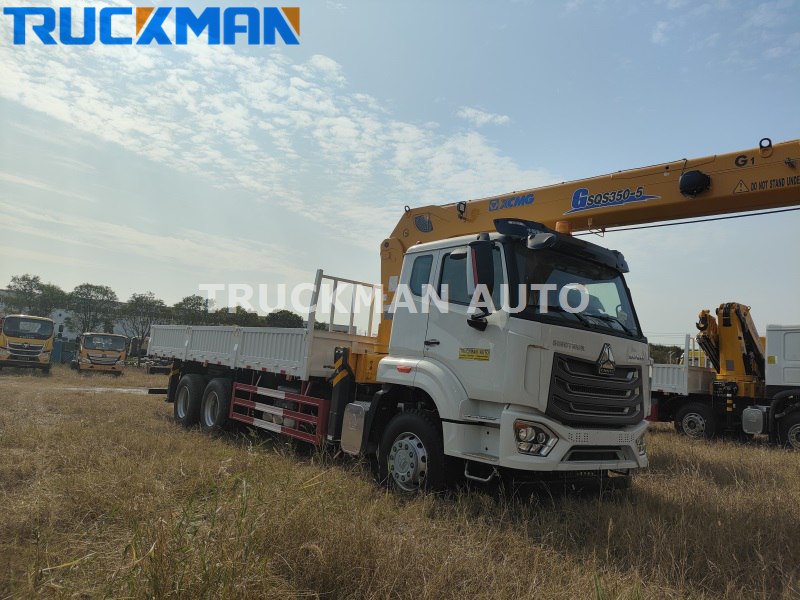

HOWO NX truck with crane is equipped with a 14 tons XCMG G-SQS350-5 crane and a HOWO NX truck chassis. HOWO NX truck with crane is also equipped with a 380-horsepower WEICHAI engine and a 10-speed SINOTRUK gearbox. The vehicle has more power and shifting is more convenient and quick. The cargo box of HOWO NX truck with crane is 7500*2500*600mm. We can customize the size of the cargo box according to customer needs.

6X4 SINOTRUK HOWO NX 380HP Truck With Crane Specification

Engine: WP10.380E22, 380HP. Euro 2

Cabin: H77L,With one bed, A/C

Gearbox: HW19710+HW70, 10F & 2R, with PTO, manual gearbox

Drive Axle: MCX16ZG,2x16000kg,

Tire: 315/80R22.5, tubeless tire, 10+1 pcs

Fuel Tank: 400L

Crane: 14Tons XCMG SQS350-5, Boom length 19.6 meters

Dimension:  11580x2580x3630mm

6X4 SINOTRUK HOWO NX 380HP truck with crane specification only for your reference, we can manufacture other model truck basic your request.

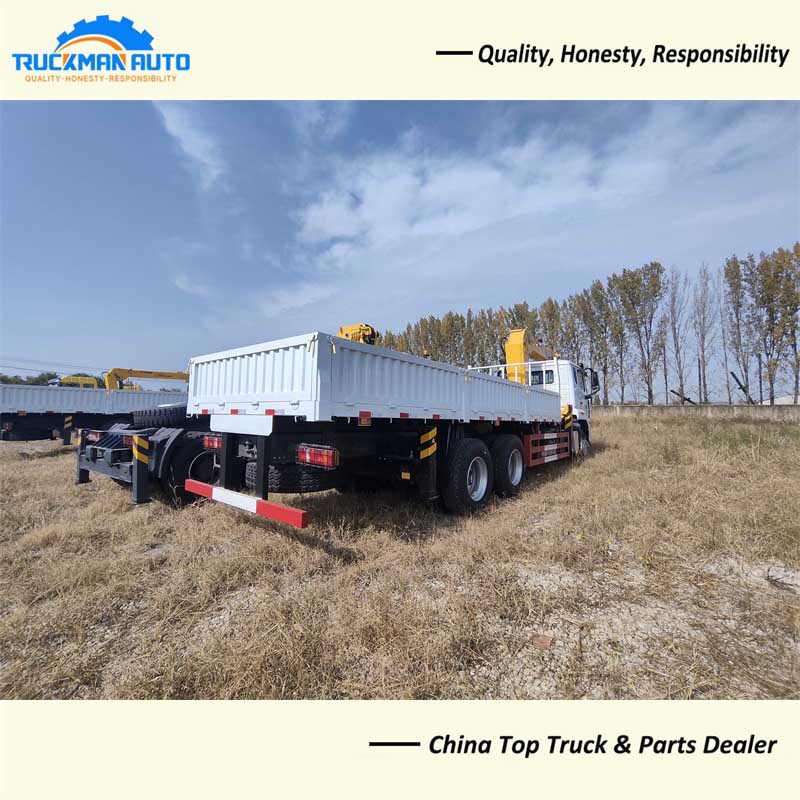

6X4 SINOTRUK HOWO NX 380HP Truck With Crane Cargo Box

The cargo box of 6x4 truck with crane can be customized according to the needs of customers. Some customers need to load goods, and customers can customize the size of the ordinary cargo box they want. Some customers need to load containers, and we can add container locks for customers. Some customers need to load construction machinery, and we can add flat platforms and tail mechanical ladders or hydraulic ladders for customers.

6X4 SINOTRUK HOWO NX 380HP Truck With Crane Advantage

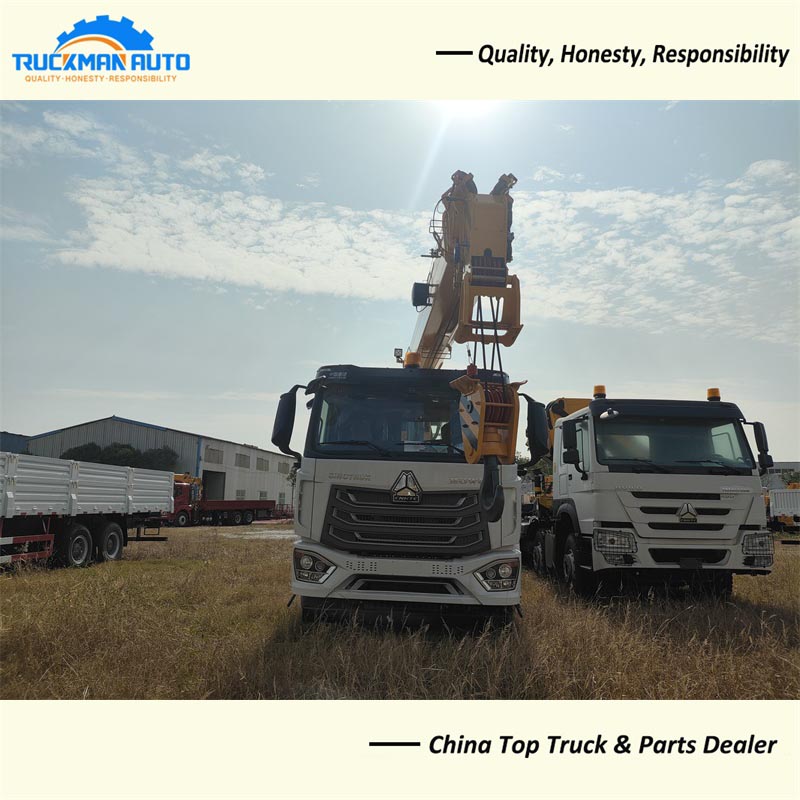

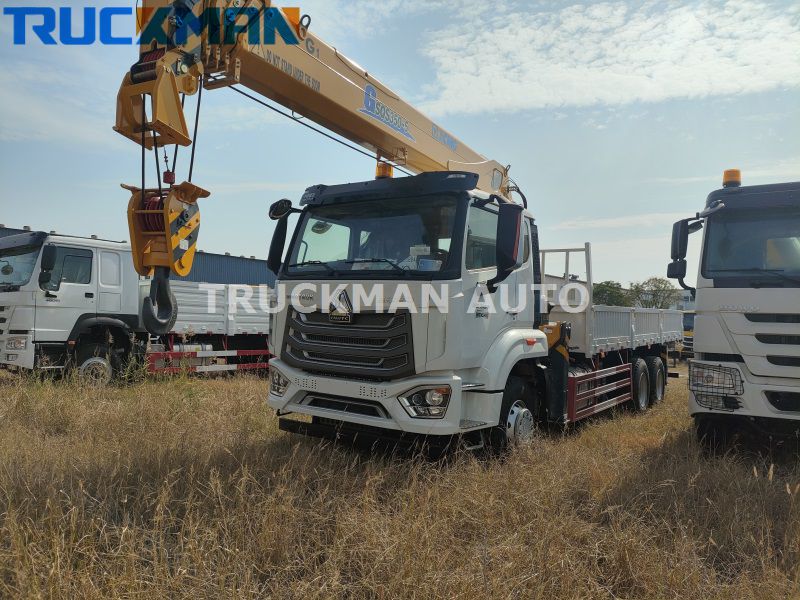

The 380HP truck with crane adopts the XCMG SQS350-5 straight-arm crane, which has an operating weight of 14 tons, a working radius of 15.5 meters, and a lifting height of 17.5 meters. The XCMG SQS350-5 can perform a 360-degree full rotation operation, and is equipped with standard front hydraulic outriggers and double-chamber hydraulic rear outriggers with an outrigger span of up to 7 meters. The high-altitude seat has a remote-controlled throttle and an electronic display that can record the lifting weight at any time to prevent overloading.
