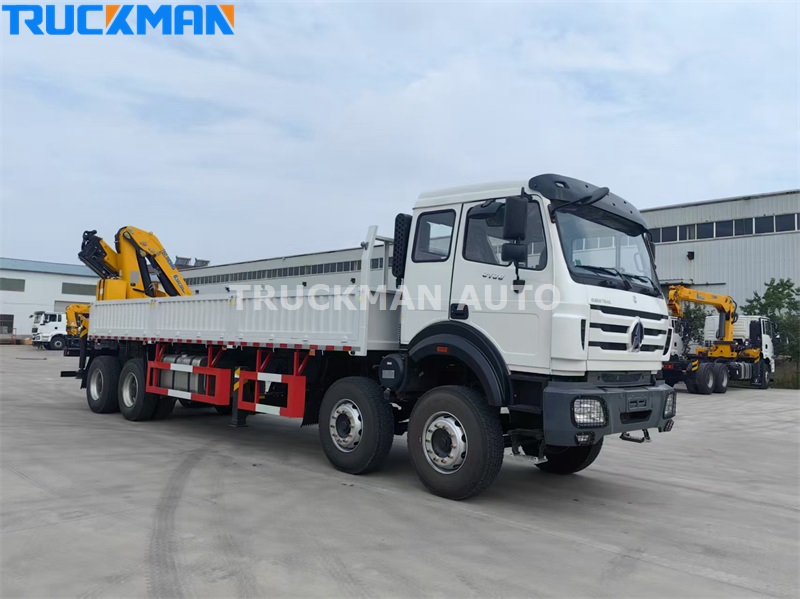

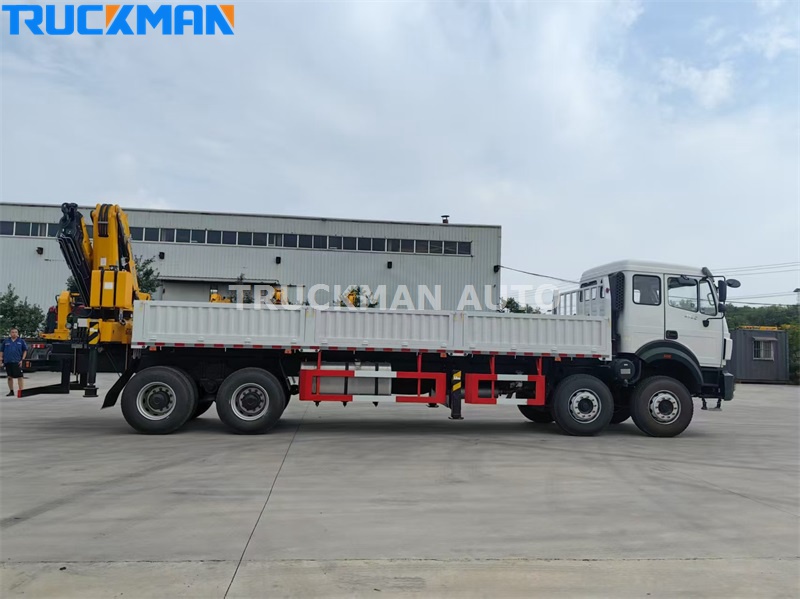

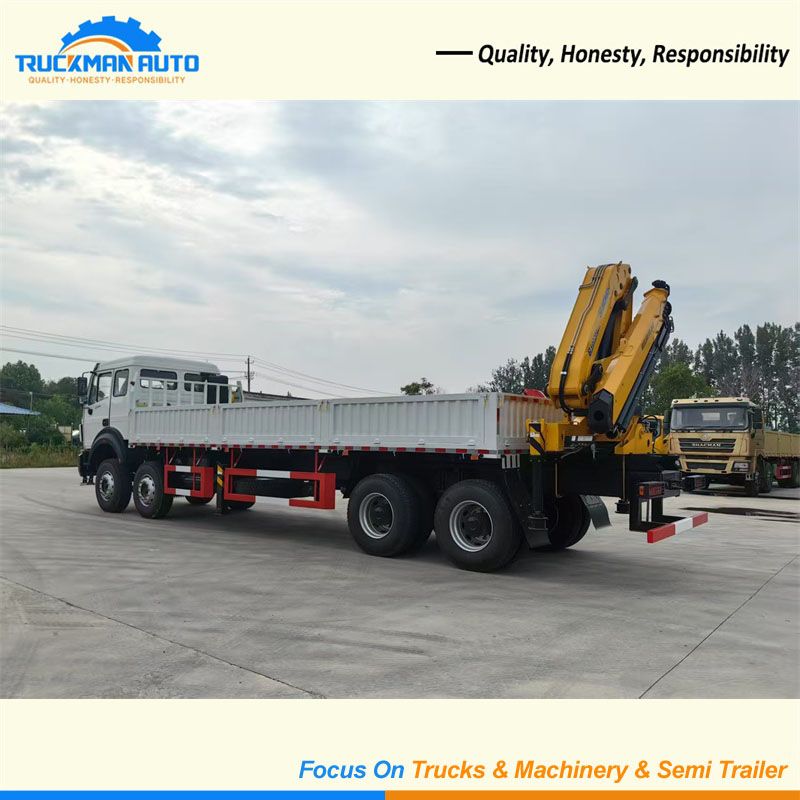

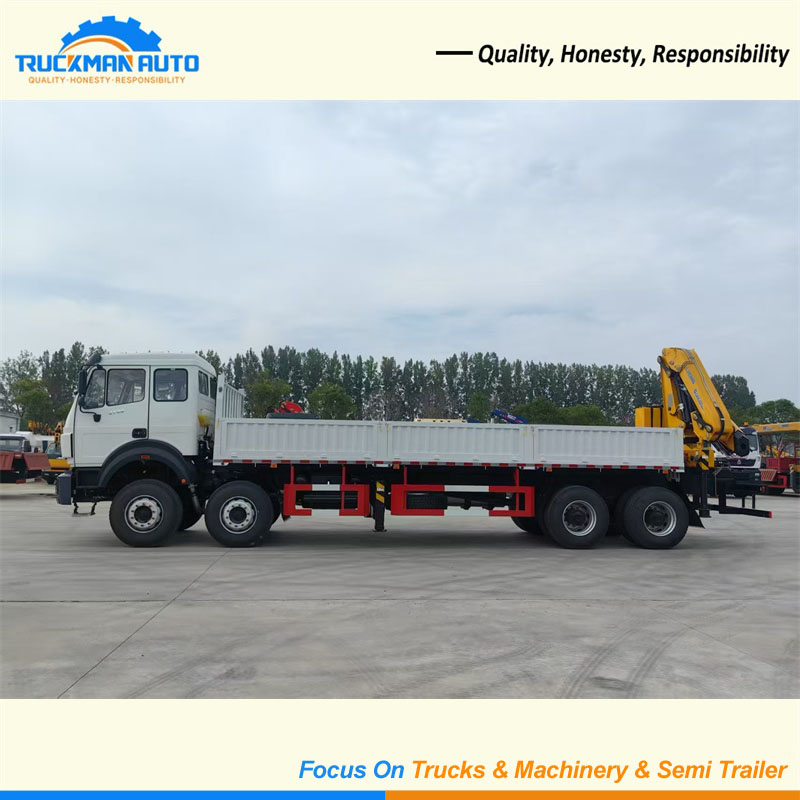

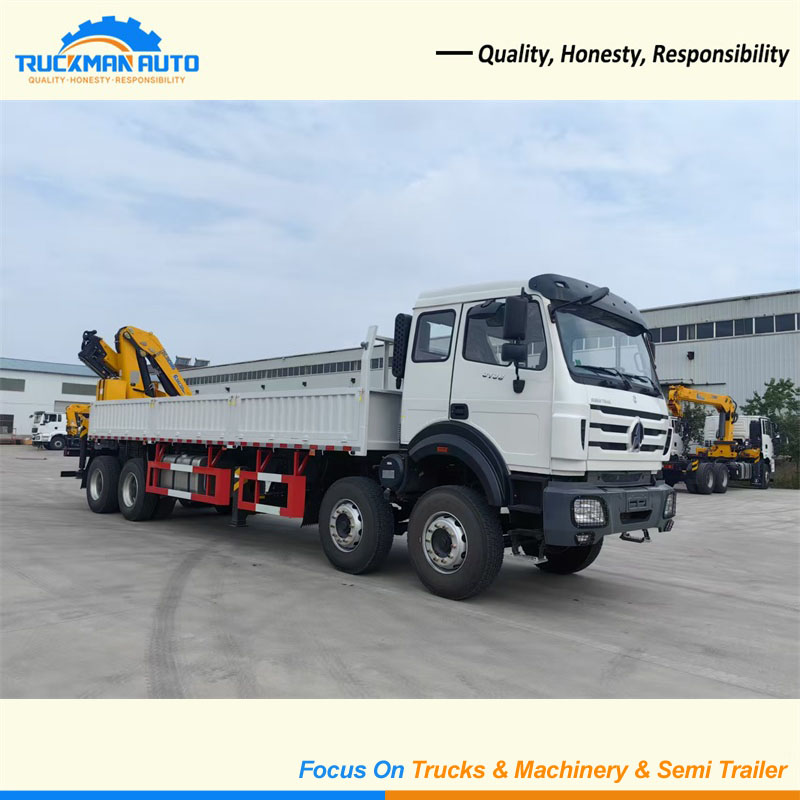

BEIBEN 8x4 380HP 40 Tons Truck Mounted Crane For DRC

About BEIBEN 8x4 380HP 40 Tons Truck Mounted Crane

Truck mounted crane, is a kind of equipment to realize the lifting, turning and hoisting of goods through hydraulic lifting and telescopic system, usually assembled on the cargo vehicle. The truck-mounted crane is composed of a cargo vehicle chassis, cargo compartment, extractor and crane, and is mostly used in stations, warehouses, docks, construction sites, field rescue and other places, which are common in the process of construction. The advantages of truck-mounted lifting and transporting vehicles are good mobility, rapid transfer, can set lifting and transport functions in one, improve the utilization of resources, flexible and multi-purpose.

BEIBEN 8x4 380HP 40 Tons Truck Mounted Crane Specification

Product Name: BEIBEN 8x4 380HP 40 Tons Truck Mounted Crane

Application: Cargo transportation

Engine: WP10.380E22, 380HP. Euro 2

Cabin: With one bed, A/C

Gearbox: 12 forward and 2 reverse gear

Tire: 12R22.5, 12+1 pcs

Color: Optional

Fuel Tank: 600

Cargo Body: 6800x2300x600mm

Crane: 10 Tons

BEIBEN 8x4 380HP 40 Tons Truck Mounted Crane only for your reference, we can manufacture other Truck Mounted Crane basic your request.

BEIBEN 8x4 380HP 40 Tons Truck Mounted Crane Cabin

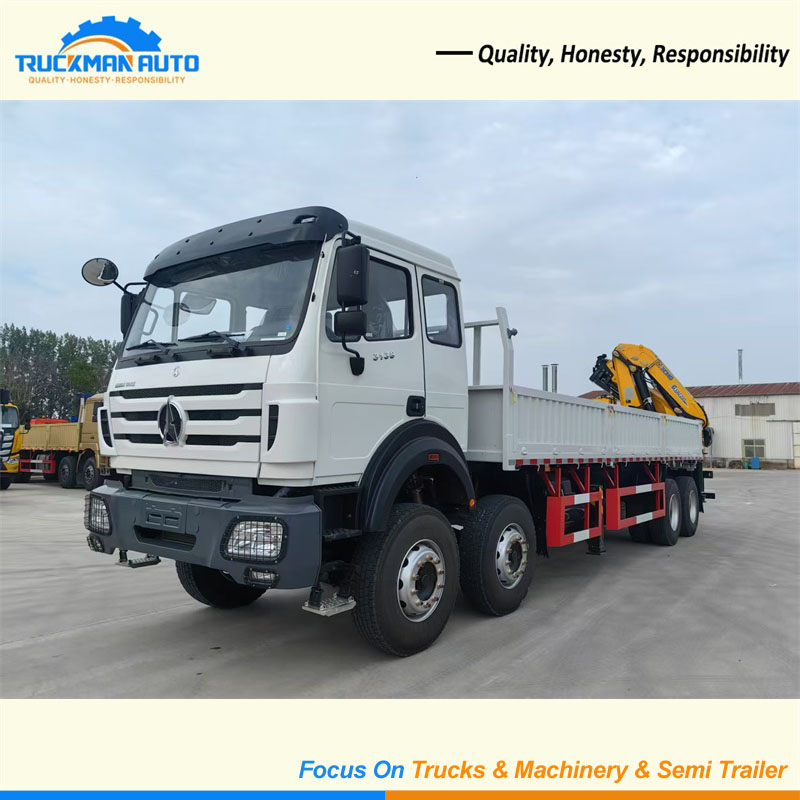

The cab of this BEIBEN truck mounted crane adopts long cab with sleeper, which can provide daily rest for the driver and reduce driving fatigue. The cab adopts double-layer all-steel structure and can be tilted forward, which is convenient for daily maintenance. The overall interior features digital instrument panel, radio (with USB interface+MP3), high backrest shock-absorbing main seat, high backrest vice seat, adjustable steering wheel, manual door locks, electric lifting glass and built-in air conditioner. The exterior of the cab is equipped with front grill panels, metal bumpers, three-step ladder, new mirror system, external sun visors.

BEIBEN 8x4 380HP 40 Tons Truck Mounted Crane

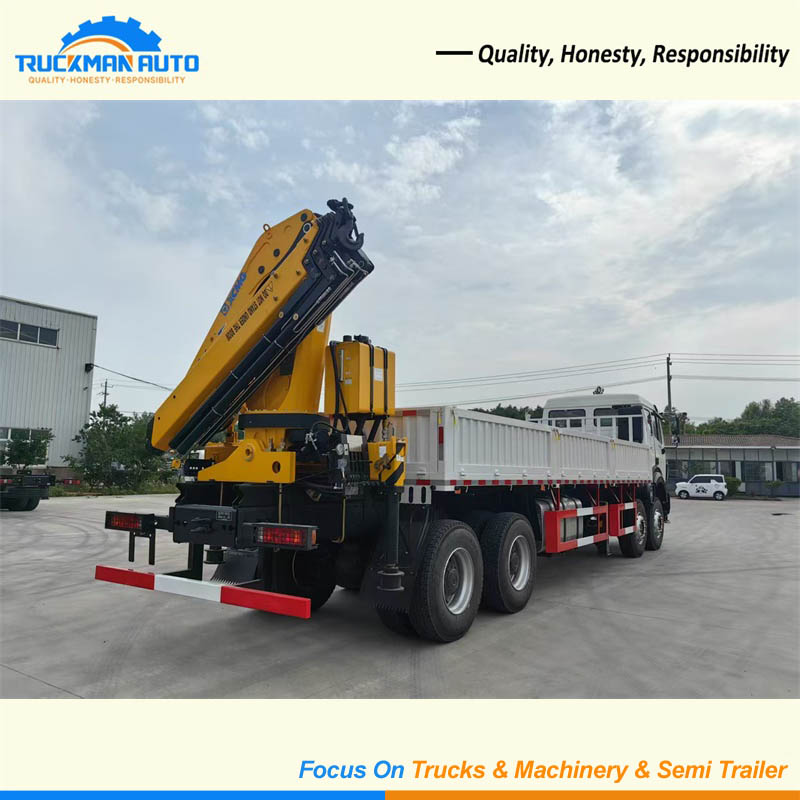

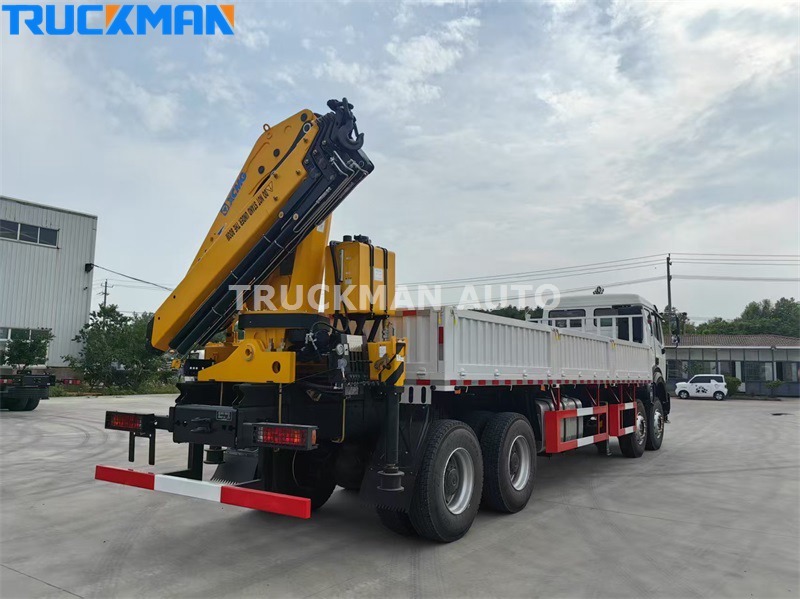

The crane of this truck mounted crane adopts XCMG GSQZ200 folding boom, maximum lifting load: 10 tonnes. Each cylinder is equipped with self-locking, slow impact one-way or two-way balance valve with excellent performance. The boom telescopic cylinders are equipped with sequence valves to ensure the reasonable sequence of boom telescoping. Each cylinder can be independently assembled to meet the needs of different sections. The crane rotates 360°forward and backward, which solves the trouble of the old folding boom crane rotating. Some parts adopt imported valve locks with high safety coefficient; the structural parts adopt high-strength steel plates with reasonable structure, strong anti-fatigue ability, safety and reliability.
