4x2 FOTON TM3 Light Cargo Truck

About 4x2 FOTON TM3 Light Cargo Truck

The FOTON light cargo truck carrier is designed with a flat head, which provides a wider view compared to the short head design of most traditional micro trucks. The rear view mirror adopts a large area mirror, with a wider field of vision and smaller blind spot. The transmission adopts full synchronizer structure, which can make the daily gears more easily and smoothly. In addition, DONG'AN transmission is matched with DONG'AN engine, the overall matching degree of the integrated power chain is higher, and it has better performance in transmission efficiency and reliability.

4x2 FOTON TM3 Light Cargo Truck Specification

Product Name: 4x2 FOTON TM3 Light Cargo Truck

Application: transportation work

Engine: DAM15R

Horsepower: 112HP

Transmission model: DAT18R

Tire: 175R14 ,4+1 pcs

Color: optional

Fuel Tank: 50L

Cargo Box Dimensions: 2820x1560x360mm

Dimensions: 4650x1680x1920mm

4x2 FOTON TM3 Light Cargo Truck only for your reference, we can manufacture other Cargo Truck basic your request.

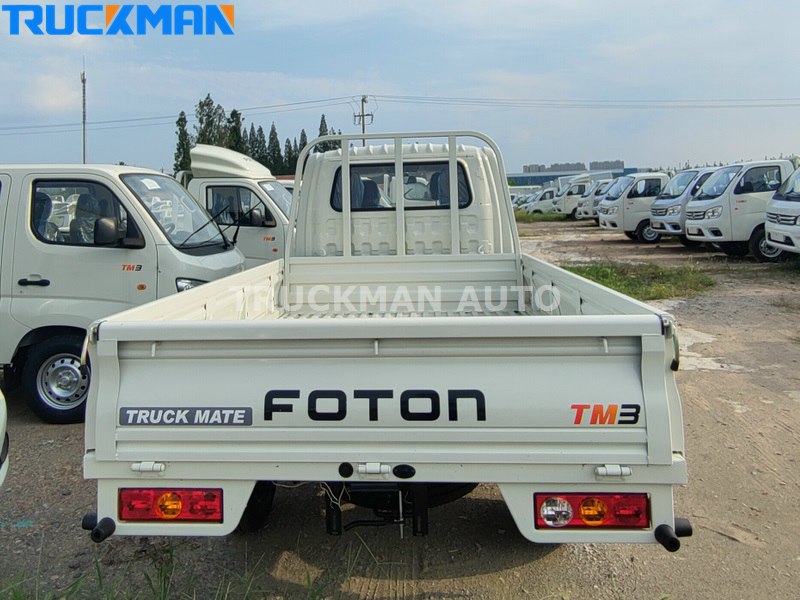

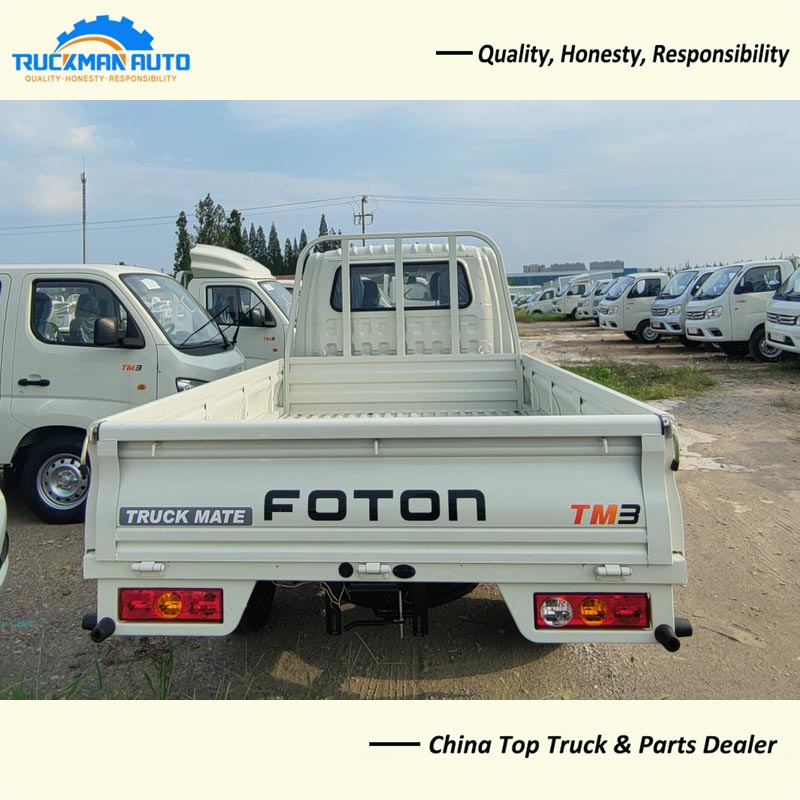

4x2 FOTON TM3 Light Cargo Truck Cargo Box

The FOTON TM3 light cargo truck carries cargo compartment is separated from the cab, and there is a gantry between the compartment and the cab, which is designed to ensure that in the process of driving, the cargo will not directly impact the cab because of inertia impact front. The workmanship of the cargo compartment is relatively fine, and there are rope hooks on both sides of the compartment, which is convenient for drivers to tie up the goods.

4x2 FOTON TM3 Light Cargo Truck Chassis

The front axle of this 4x2 FOTON light truck carrier adopts independent suspension, which greatly improves the comfort of the cab, and it is very suitable for users who load a small amount of goods, and it can be used as both a truck and a mobility scooter. While the rear axle adopts a 1.5-ton reinforced axle, the rear axle tires are designed with single tires, and the suspension is a multi-leaf spring suspension with 5 steel plates. The front independent suspension can improve the comfort of the driver and passenger, while the reinforced frame and rear axle can ensure the loading strength.
