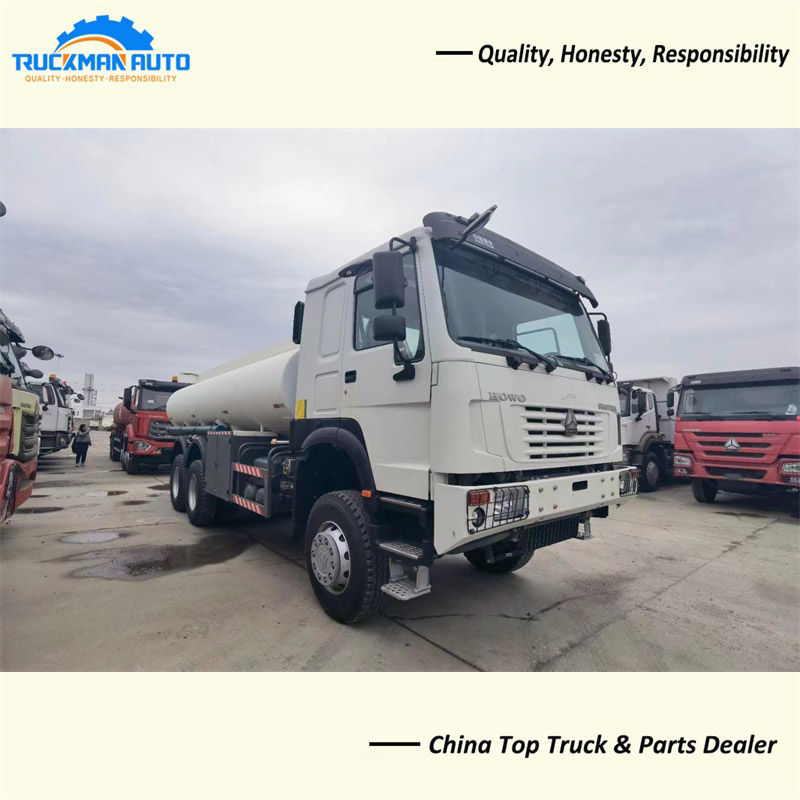

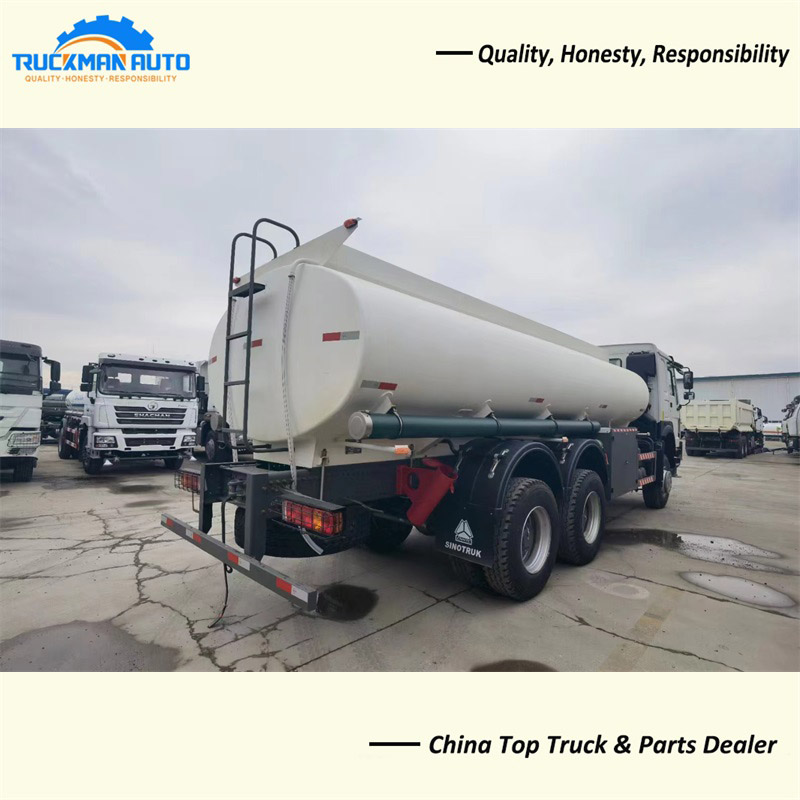

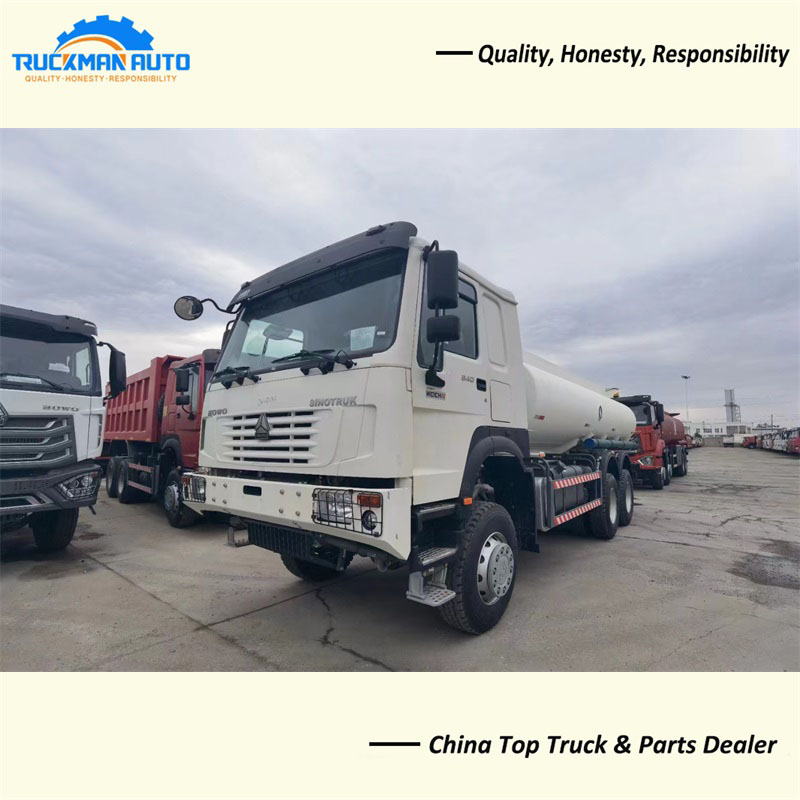

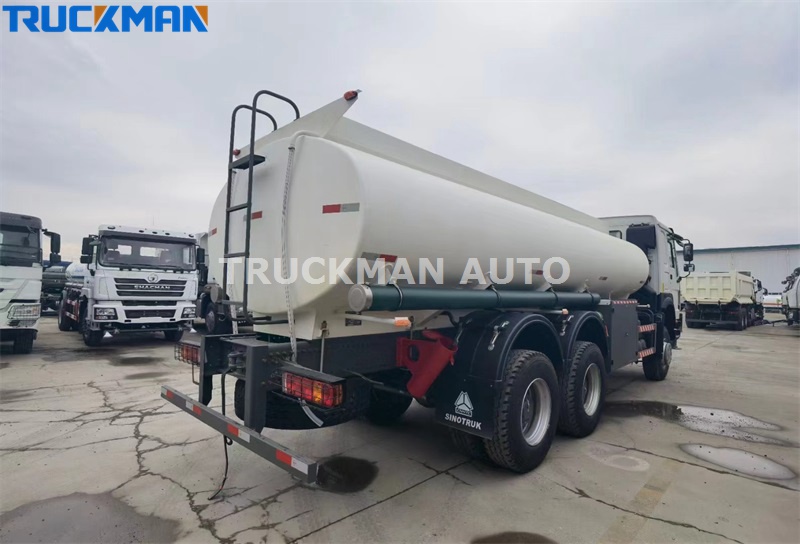

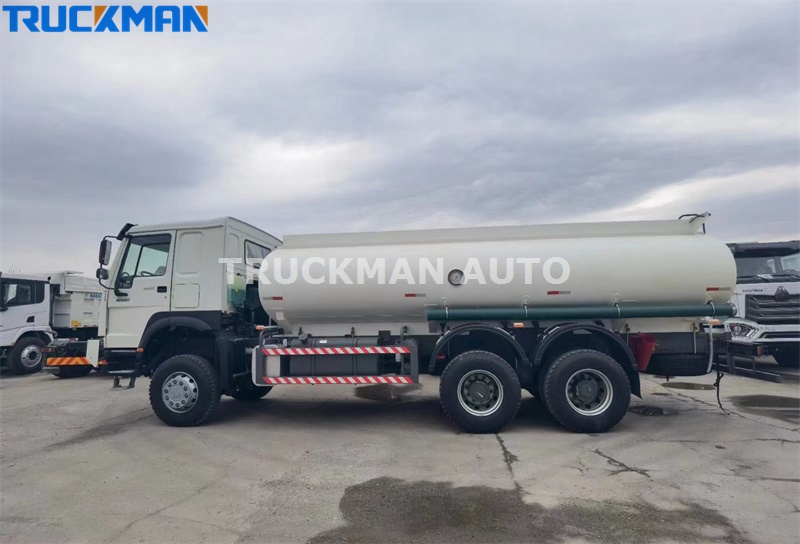

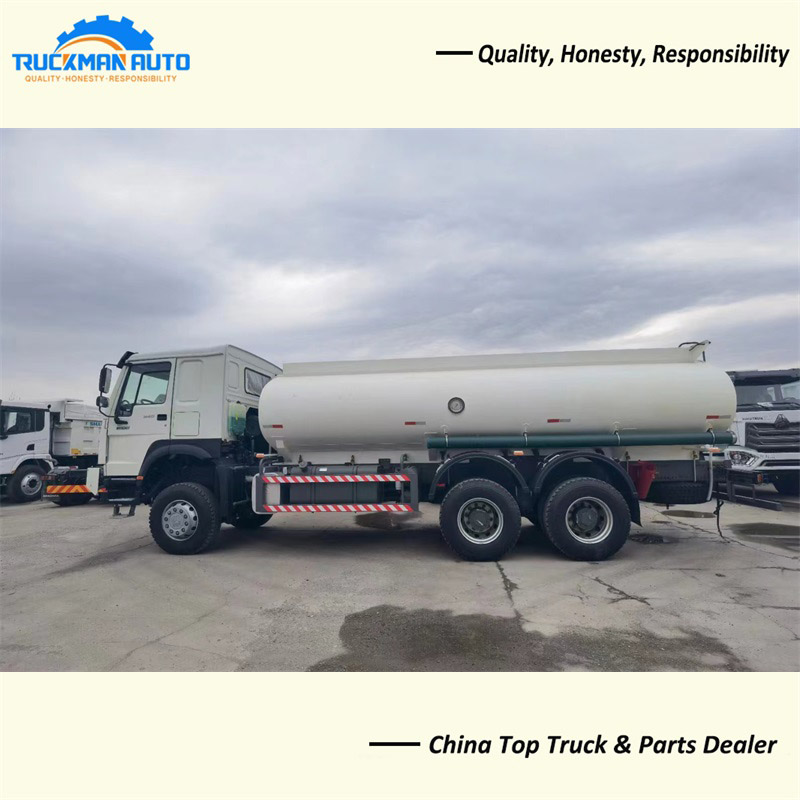

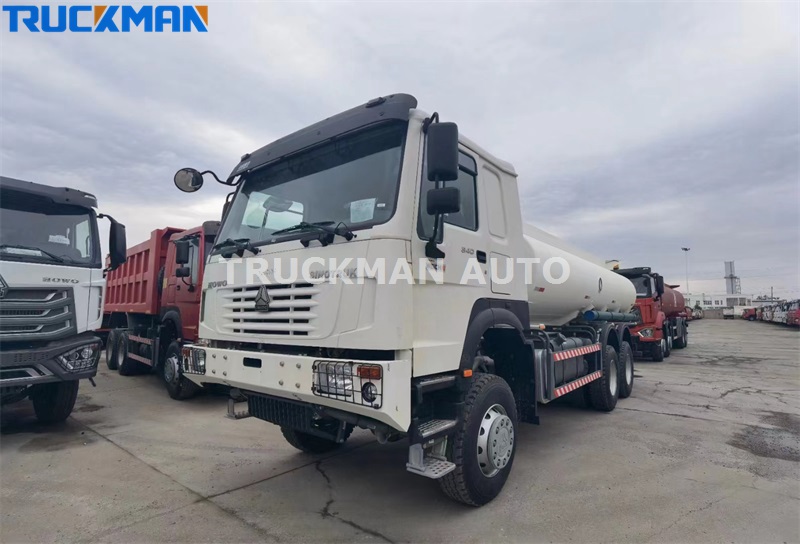

13000 Liters SINO TRUCK HOWO 6X6 Water Truck

About 13000 Liters SINO TRUCK HOWO 6X6 Water Truck

SINO TRUCK HOWO water truck is an economical vehicle. The SINO TRUCK water truck has a reasonable layout and beautiful appearance. SINO TRUCK HOWO water truck adopts the chassis of SINOTRUK, which is full of power. The chassis of SINOTRUK has strong load-bearing capacity and large liquid carrying capacity. SINO TRUCK water truck has many functions such as road sprinkling, emergency firefighting, spray dust reduction, etc.

13000 Liters SINO TRUCK HOWO 6X6 Water Truck Specification

Engine: WP10.340E22, 340HP. Euro 2

Cabin: HW76,With one bed, A/C

Gearbox: HW19710+HW50, 10F & 2R, with PTO, manual gearbox

Drive Axle: MCX16ZG,2x16000kg,

Tire: 315/80R22.5, tubeless tire, 10+1 pcs

Fuel Tank: 400L

Tank Body: 13m3

13000 Liters SINO TRUCK HOWO 6X6 water truck specification only for your reference, we can manufacture other model truck basic your request.

13000 Liters SINO TRUCK HOWO 6X6 Water Truck Tank Body

The tank body of SINO TRUCK HOWO water truck adopts an elliptical structure, which has a larger volume than the elliptical sprinkler tank in the industry, up to 13m³. It is made of one time use of large carbon steel molds and robotic welding technology. The bends of the SINO TRUCK water truck are smooth and beautiful without tailor welding, and the large bending radius can effectively reduce the impact and pressure loss when the waterway turns.

13000 Liters SINO TRUCK HOWO 6X6 Water Truck Details

The internal wave protection board of the 13000 Liters water truck adopts a high strength corrugated structure, and the maintenance channels are reasonably and symmetrically arranged. The 13000 Liters water truck has light weight, high strength and strong impact resistance. The 13 cubic water truck adopts an intelligent design. The air valve is installed in the air control box, which can effectively isolate the water source and dust and extend the service life of the air valve.
