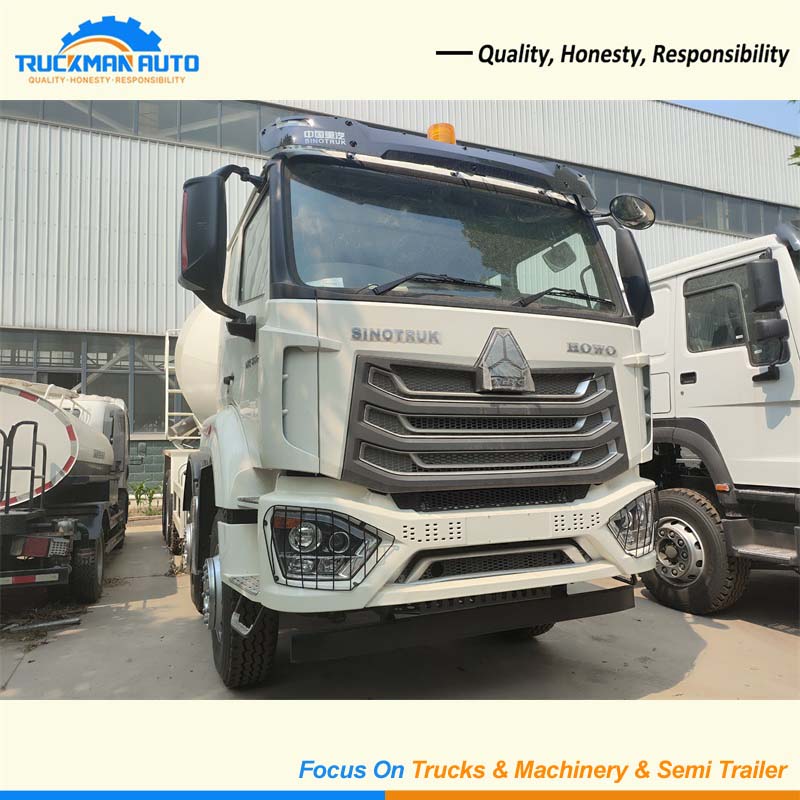

SINOTRUK HOWO NX 380HP 10 Cubic Meters Concrete Mixer Truck

About SINOTRUK HOWO NX 380HP 10 Cubic Meters Concrete Mixer Truck

Concrete mixer truck is composed of a car chassis and a special device for concrete mixing and transportation, which will always keep the mixing drum rotating during transportation to ensure that the concrete carried will not solidify, and after transporting the concrete, the inside of the mixing drum is usually rinsed with water to prevent the hardened concrete from occupying the space, so that the mixing drum's volume will become less and less, and the working principle is to take out the power of the car chassis through the power take-off device and drive the variable pump of the hydraulic system, which converts mechanical energy into hydraulic energy and transmits it to the quantitative motor, which in turn drives the reducer, which drives the mixing device to mix the concrete.

SINOTRUK HOWO NX 380HP 10 Cubic Meters Concrete Mixer Truck Specification

Product Name: SINOTRUK HOWO NX 380HP 10 Cubic Meters Concrete Mixer Truck

Application: Concrete transportation

Engine: WP10.380E22, 380HP. Euro 2

Cabin: With one bed, A/C

Gearbox: 10 forward and 2 reverse gear

Tire: 12.00R20, 10 pcs

Color: Optional

Fuel Tank: 300L

Cargo Box: 10 CBM

SINOTRUK HOWO NX 380HP 10 Cubic Meters Concrete Mixer Truck only for your reference, we can manufacture other Mixer Truck basic your request.

SINOTRUK HOWO NX 380HP 10 Cubic Meters Concrete Mixer Truck Tank Body

The structure of the mixing cylinder is simple, compact, lightweight, and reduces the vehicle weight, which is conducive to improving the effective loading capacity of the SINOTRUK mixer truck and relatively reducing the power consumption on board. At the same time, the arrangement of the structure to adapt to the narrow body shape of the chassis and height limitations, reduce the mixing cylinder and mixer truck vehicle height and centre of gravity to ensure that the exercise of the mixer truck stability and throughput, there is enough effective loading capacity to meet the provisions of the mixing and loading and unloading performance, structurally adapted to the carrier chassis and mixing the work of the characteristics of the requirements of the chassis.

SINOTRUK HOWO NX 380HP 10 Cubic Meters Concrete Mixer Truck Cleaning

Since concrete will solidify into hard lumps in a short period of time and is corrosive to steel and paint, washing the concrete adhering to the concrete storage tank and the inlet and outlet ports after each use of the concrete storage tank is a serious task that must be performed for daily maintenance. This includes:

a. Rinse the inlet with water before each filling so that the inlet remains wet during filling;

b. Filling the cleaning water tank that comes with the truck with water while loading;

c. Rinsing the inlet after loading to wash away any residual concrete in the vicinity of the inlet;
