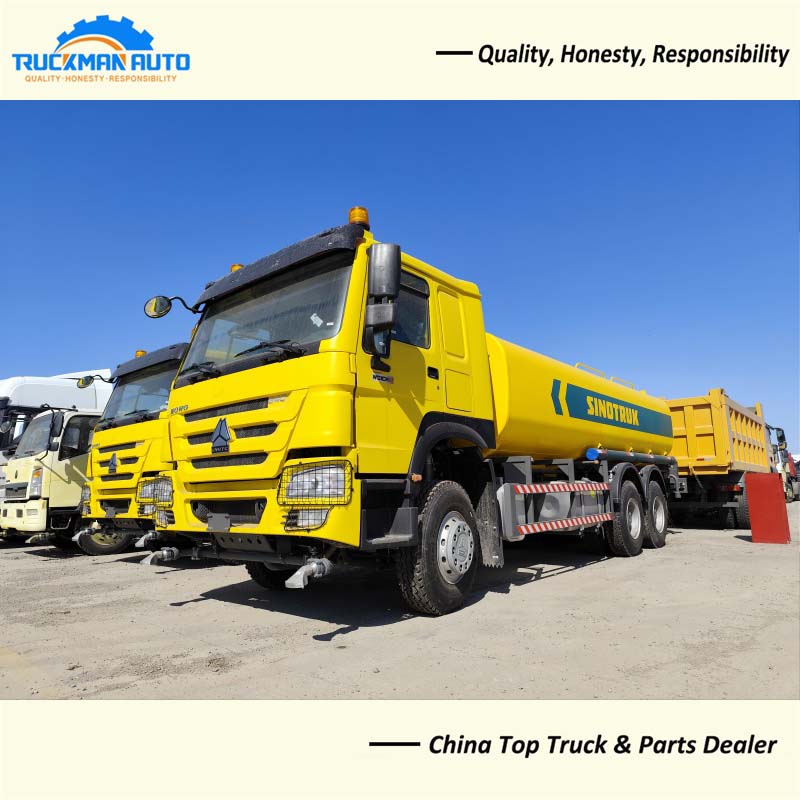

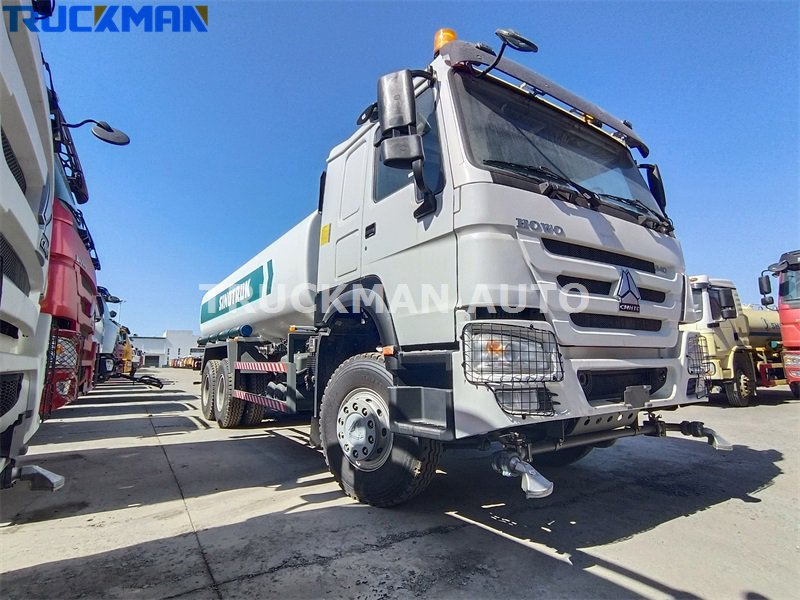

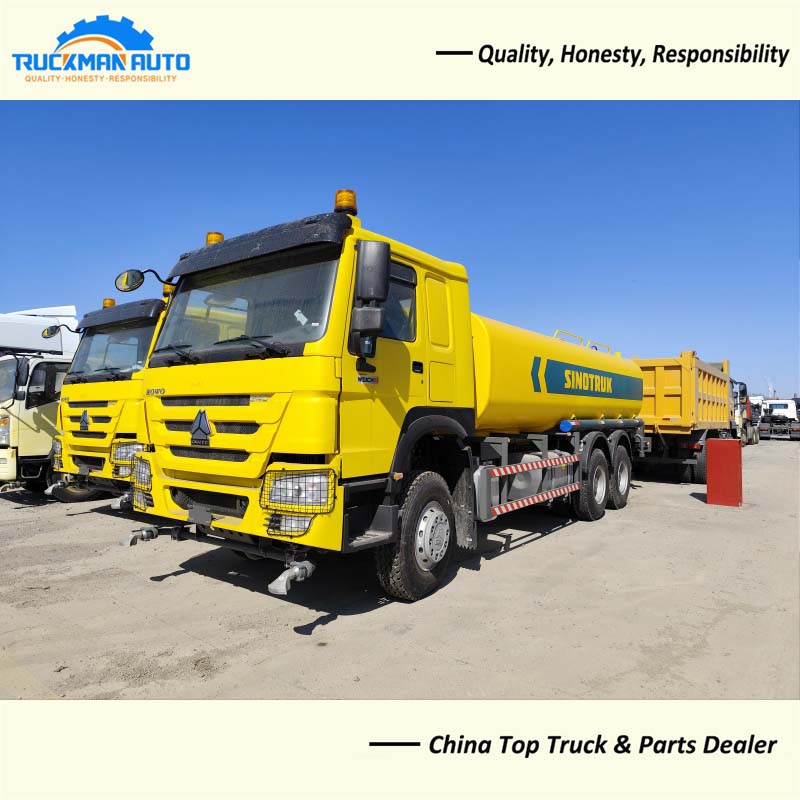

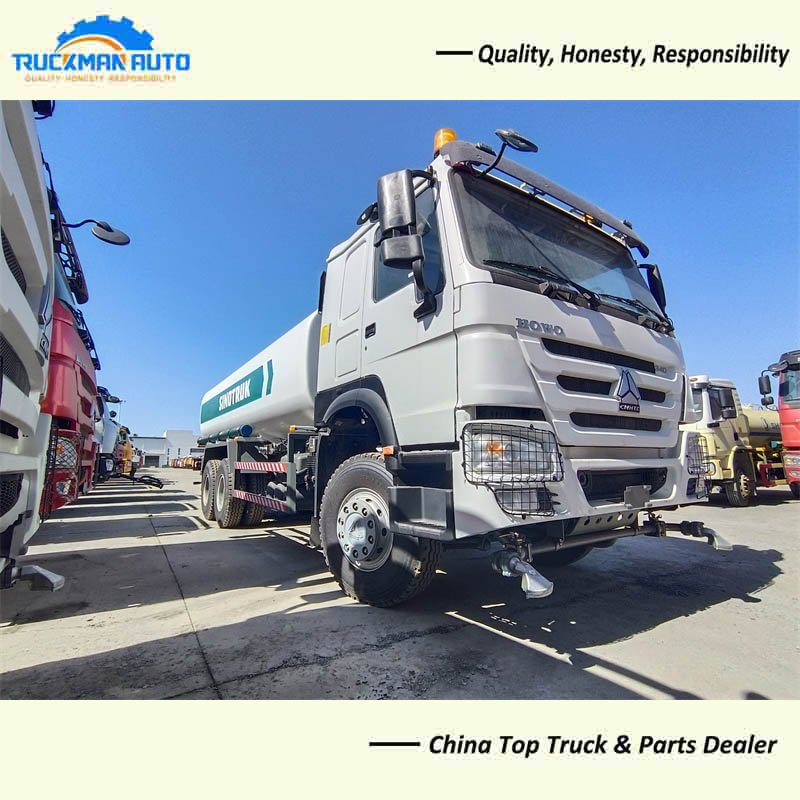

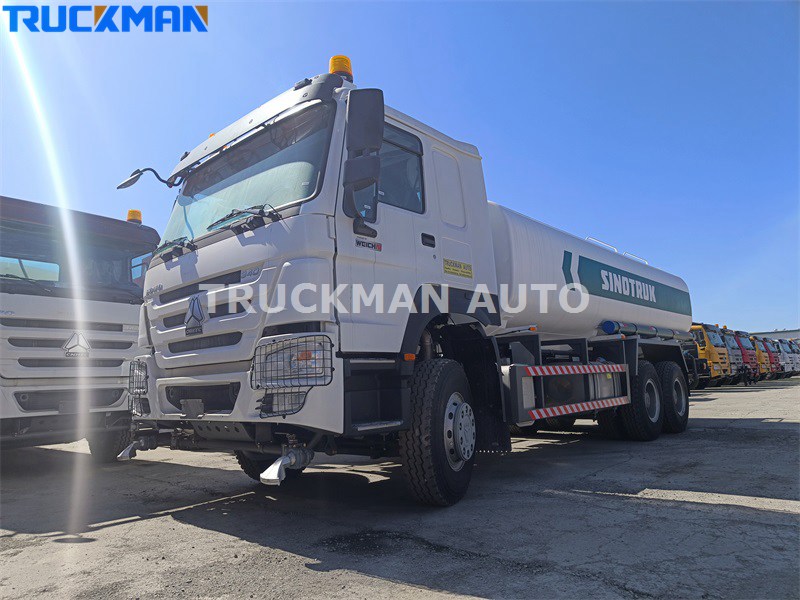

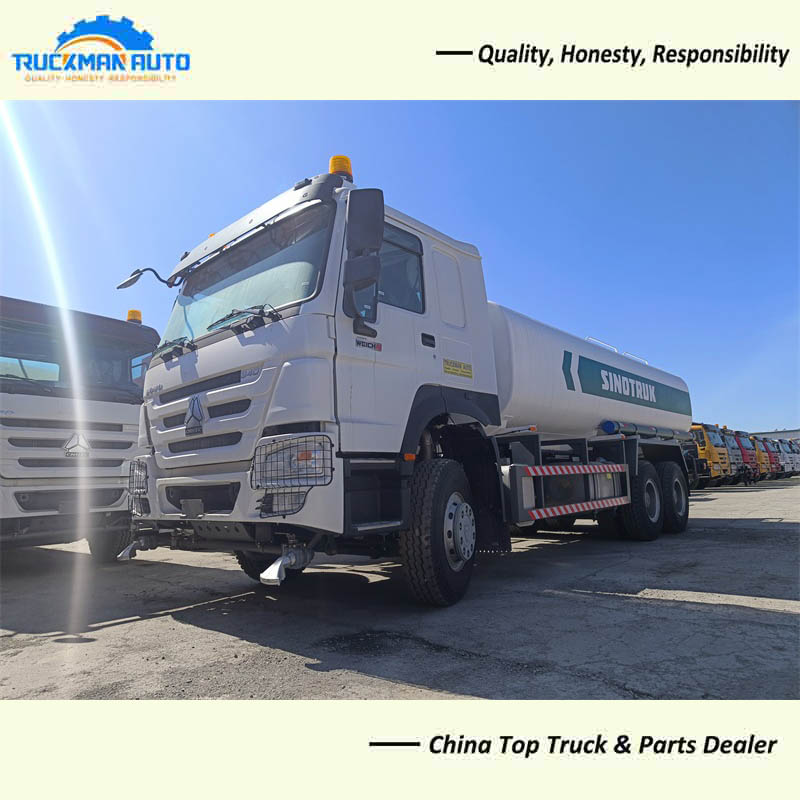

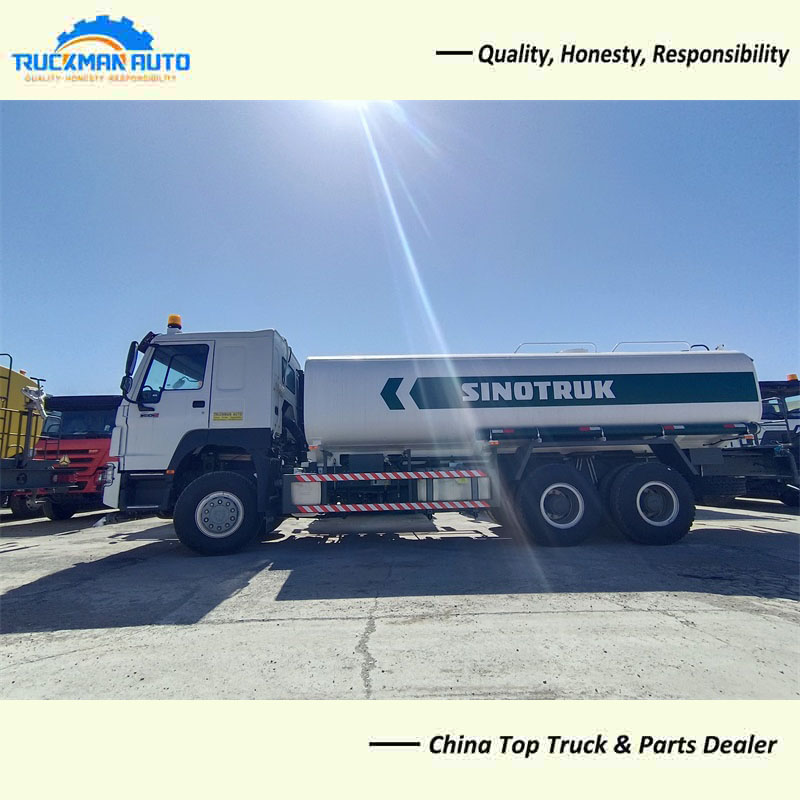

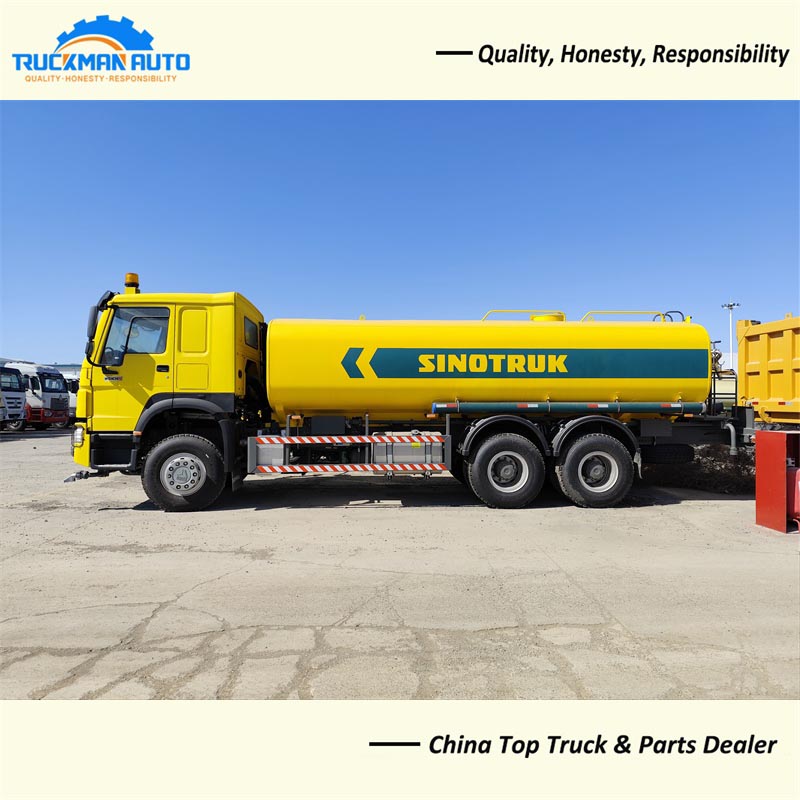

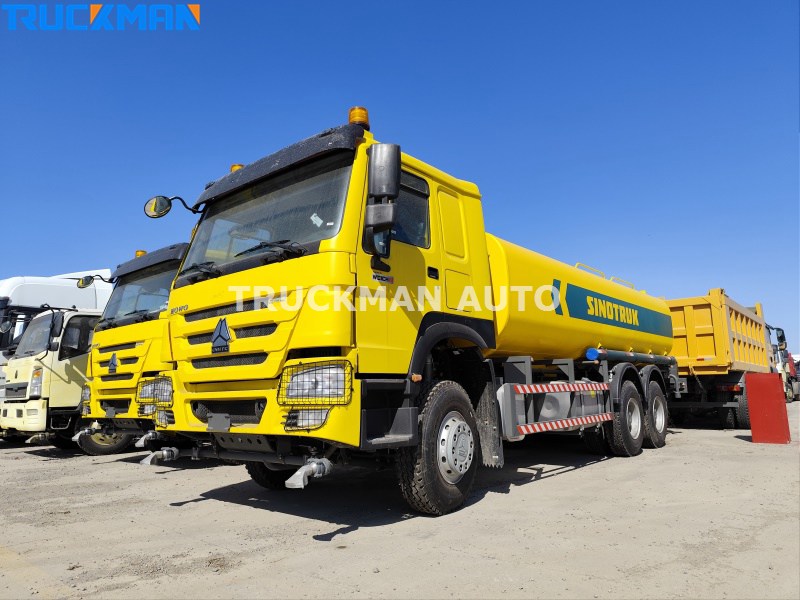

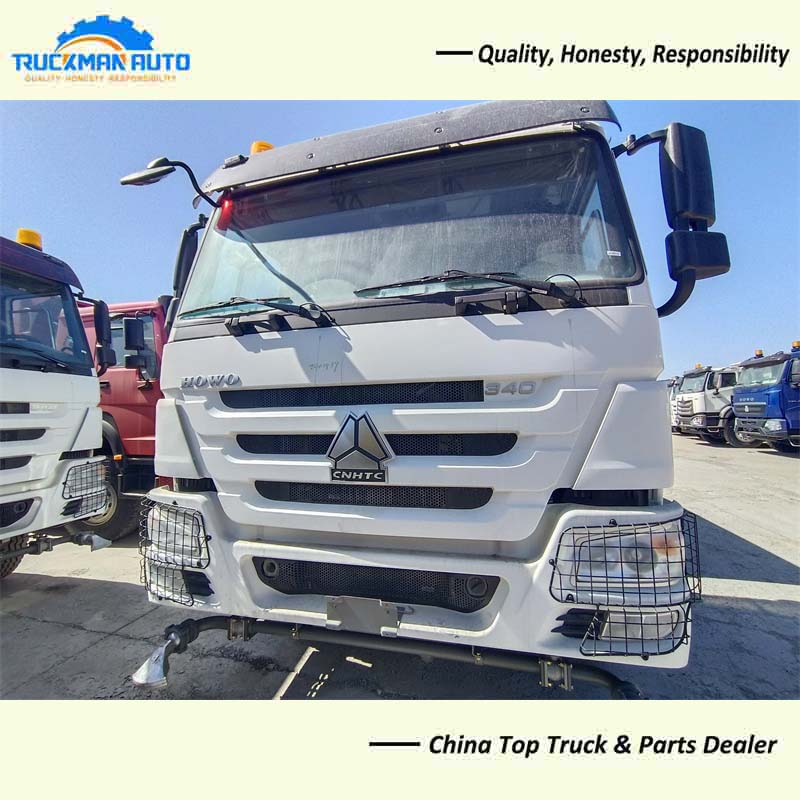

5000 Gallon SINOTRUK HOWO 340HP Sprinkler Truck

About 5000 Gallon Meter SINOTRUK HOWO 340HP Sprinkler Truck

This HOWO sprinkler truck has 10+1 tires, left hand drive, and 340 horsepower. The capacity of this HOWO sprinkler truck is 5000 Gallon. It has front flushing, rear spraying, side spraying, and a rear mounted working platform. There is a high pressure water cannon on the working platform. It has excellent performance, reliable operation, high efficiency, large flow rate and easy maintenance.This HOWO sprinkler truck has a reasonable layout, easy operation, beautiful appearance, and a suitable tank volume. The vehicle adopts SINOTRUK chassis, which has strong power and strong carrying capacity.

5000 Gallon SINOTRUK HOWO 340HP Sprinkler Truck Specification

Engine: WP10.340E22, 340HP. Euro 2

Cabin: HW76, with one bed, A/C

Gearbox: HW19710+HOWO70, 10F & 2R, with PTO, manual gearbox

Drive Axle: HC16,2x16000kg,

Tire:  12R22.5, radial tyre, 10+1 pcs

Cargo Size: 10-30m3

Fuel Tank: 300L

5000 Gallon SINOTRUK HOWO 340HP sprinkler truck specification only for your reference, we can manufacture other model trucks basic your request.

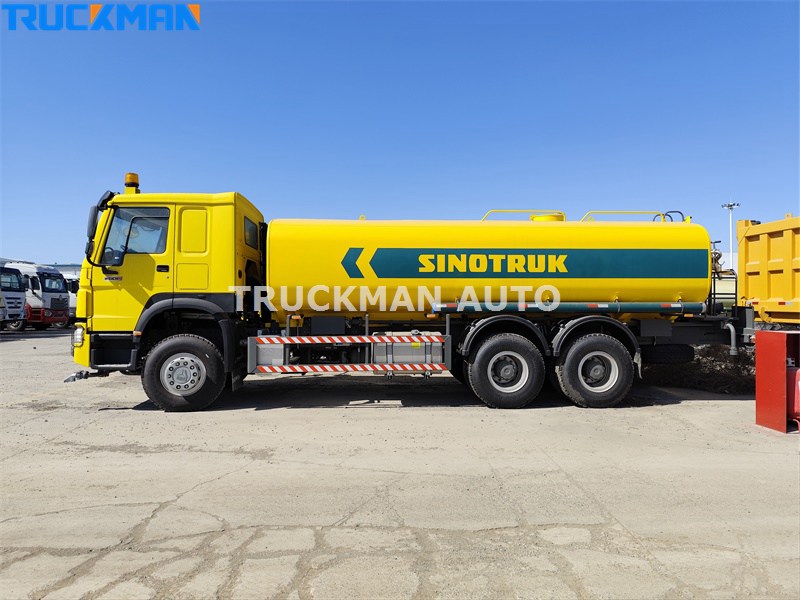

5000 Gallon SINOTRUK HOWO 340HP Sprinkler Truck Water Tank

The tank body of this HOWO sprinkler truck adopts a rectangular and round structure. Compared with other oval sprinkler tanks, it has a larger volume, up to 5000 Gallon, and a single operation time is more efficient. The tank body is made of high quality carbon steel, formed in one step using a large plate rolling machine, and designed through automatic submerged arc welding. It has a beautiful appearance and excellent sealing performance. The tank is equipped with a wave proof board, which adopts a large corrugated structure and is bent in a wave shape, which has the function of preventing waves and swaying to reduce the impact of the liquid in the tank when the truck is driving.

5000 Gallon SINOTRUK HOWO 340HP Sprinkler Truck Features

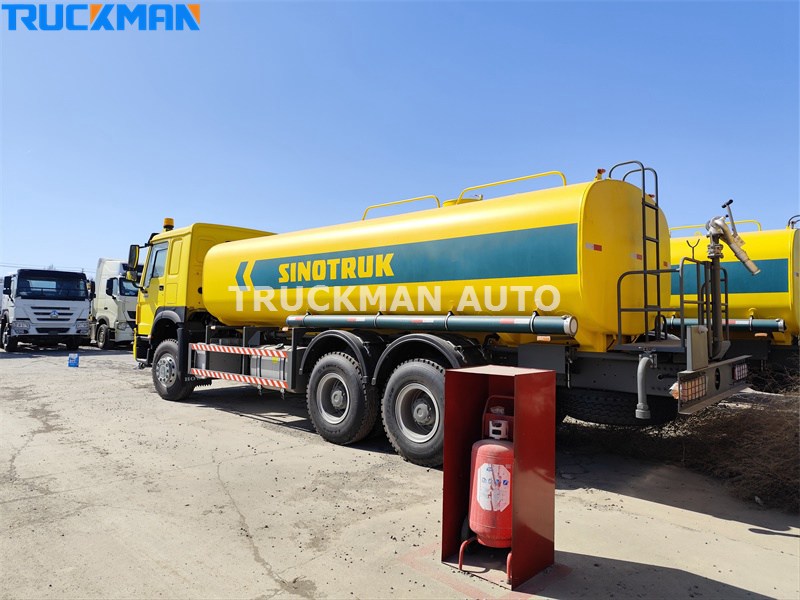

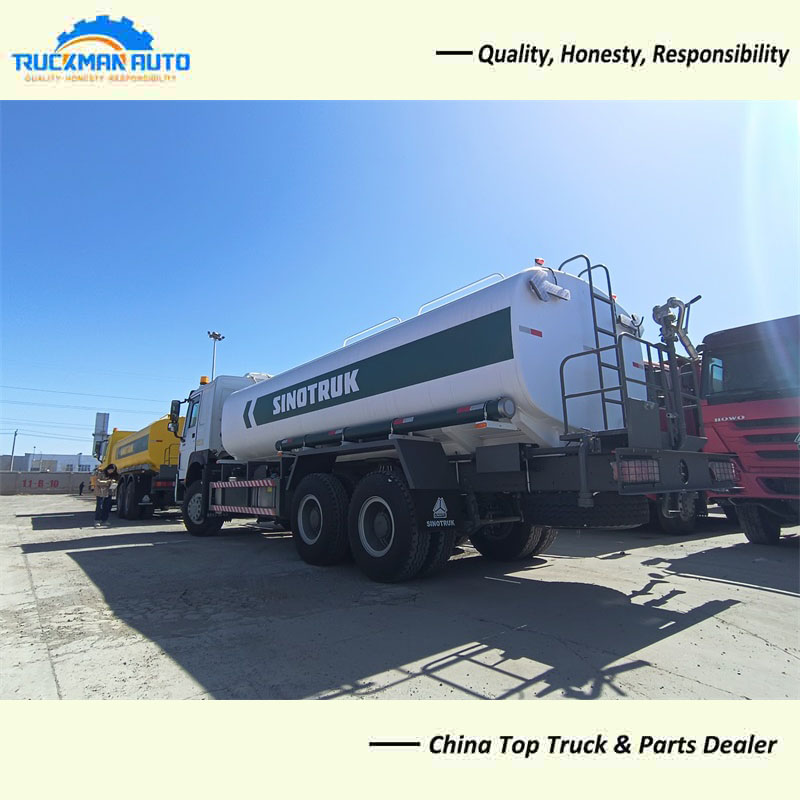

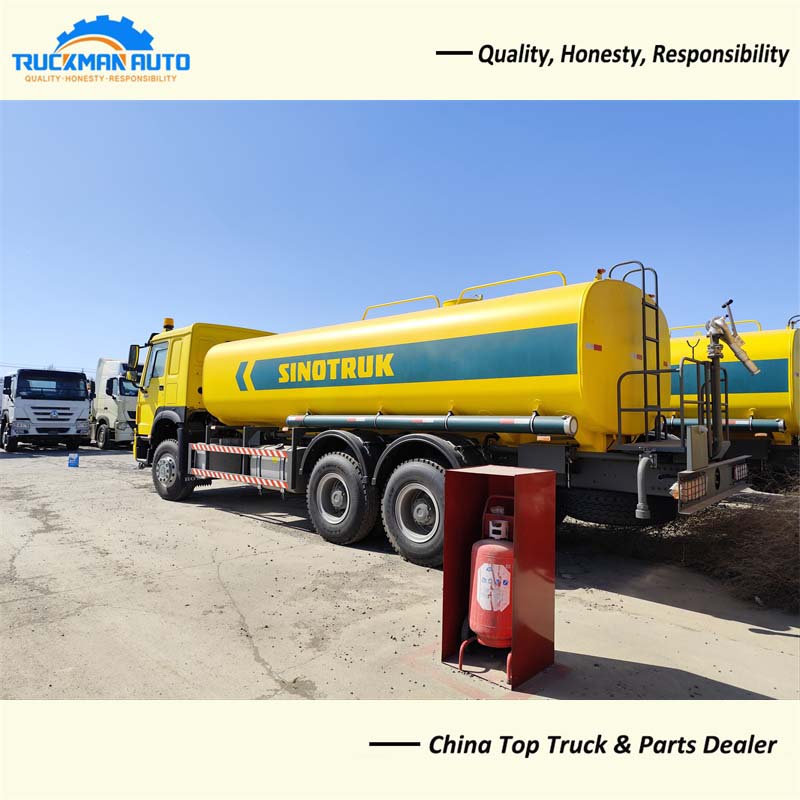

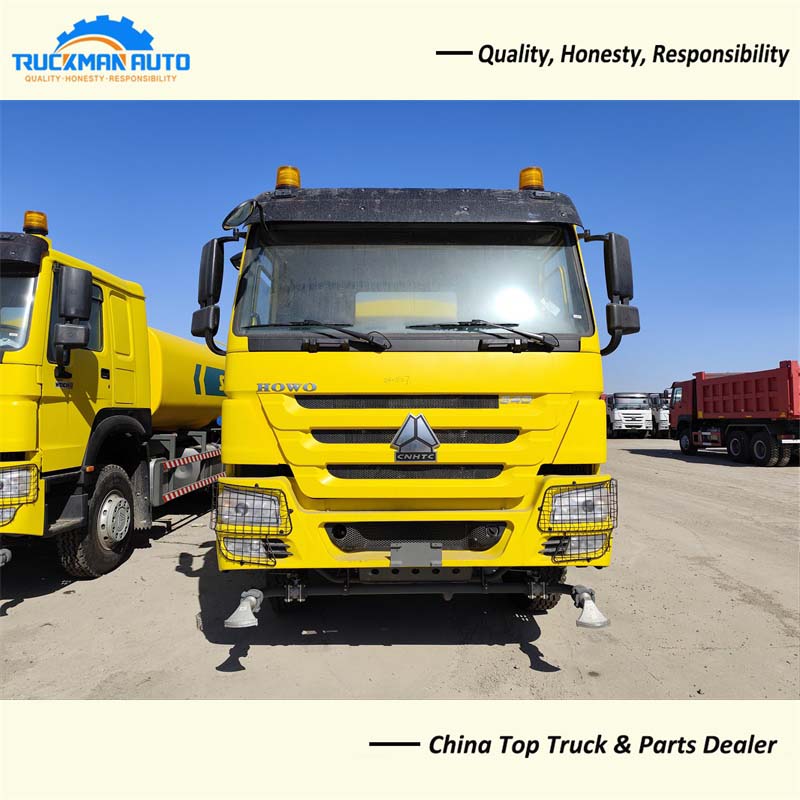

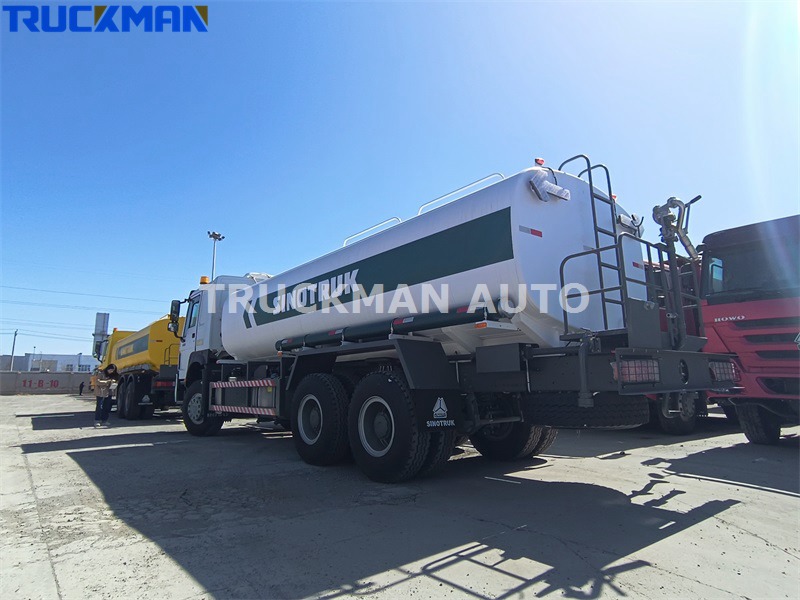

5000 Gallon SINOTRUK HOWO 340HP sprinkler truck uses a reinforced duckbill for front spraying operations and a universal diagonal punch for diagonal flushing operations. It has high flushing pressure and can clean a wider area of the road surface. It is easy to clean the garbage on the road surface and curb stones. It can also cool down the road surface and reduce dust. The fan shaped duckbill can be used for side spraying operations to clean and water green plants of different heights. The water gun on the operating table needs to be operated manually and has a variety of operating modes, including direct flushing, heavy rain, moderate rain, light rain, etc. It can be continuously adjusted and rotated 360°freely.
