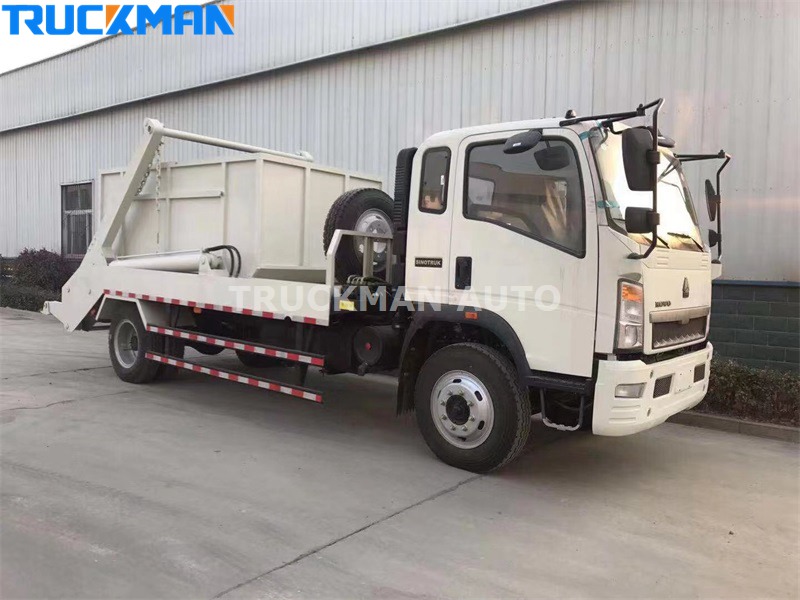

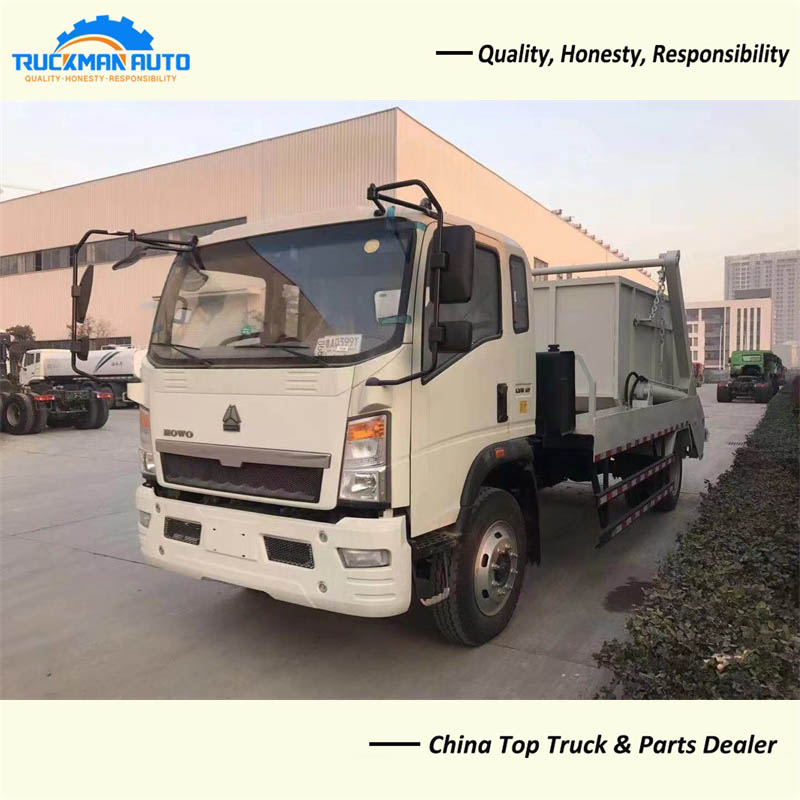

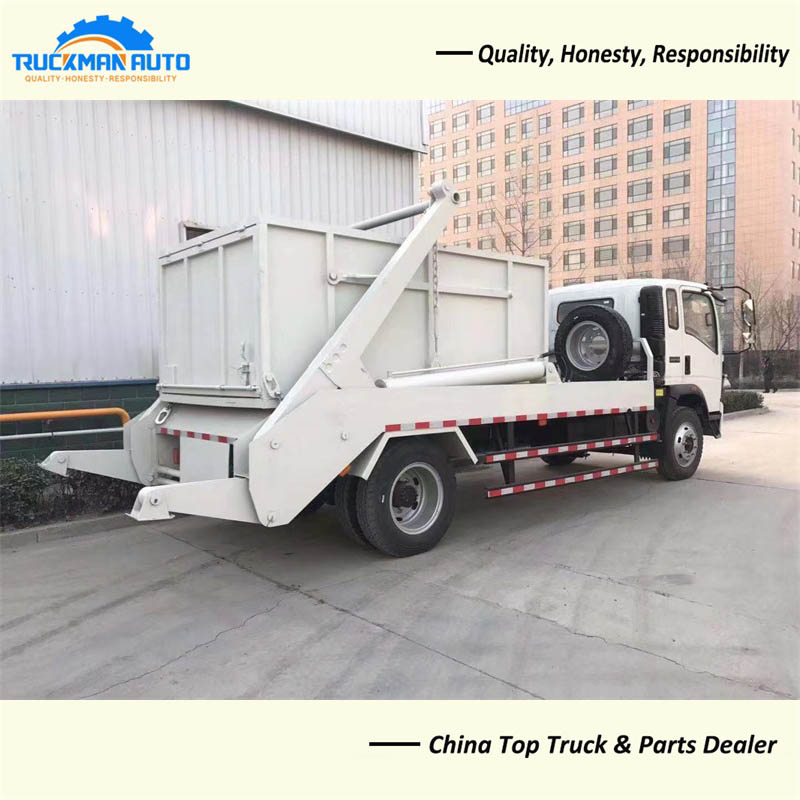

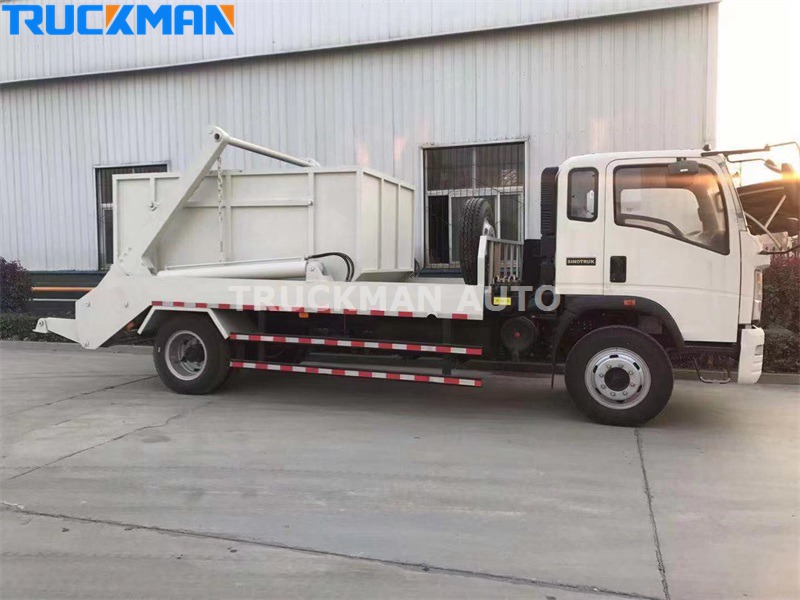

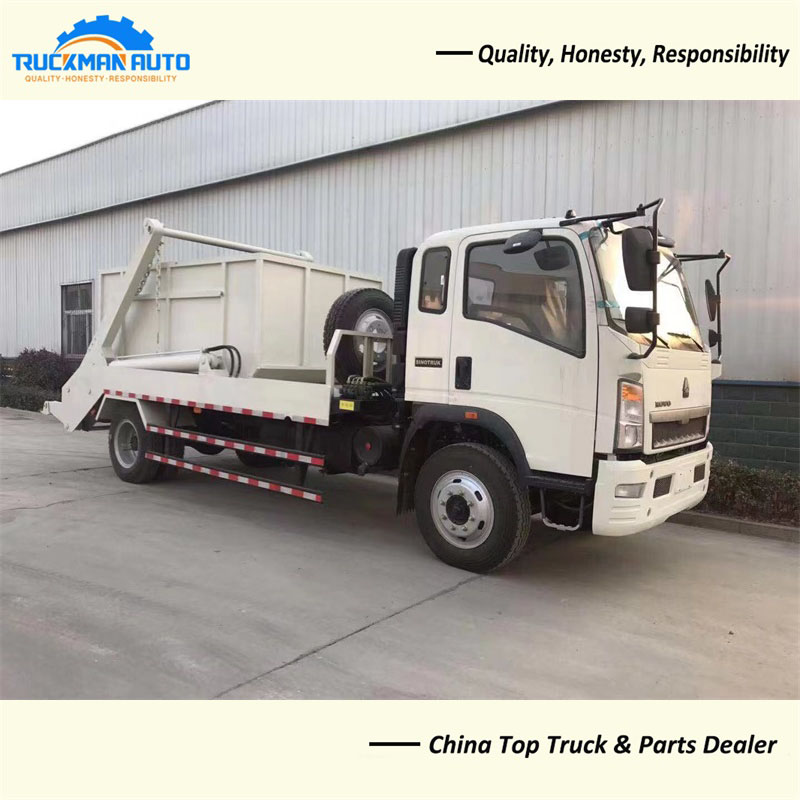

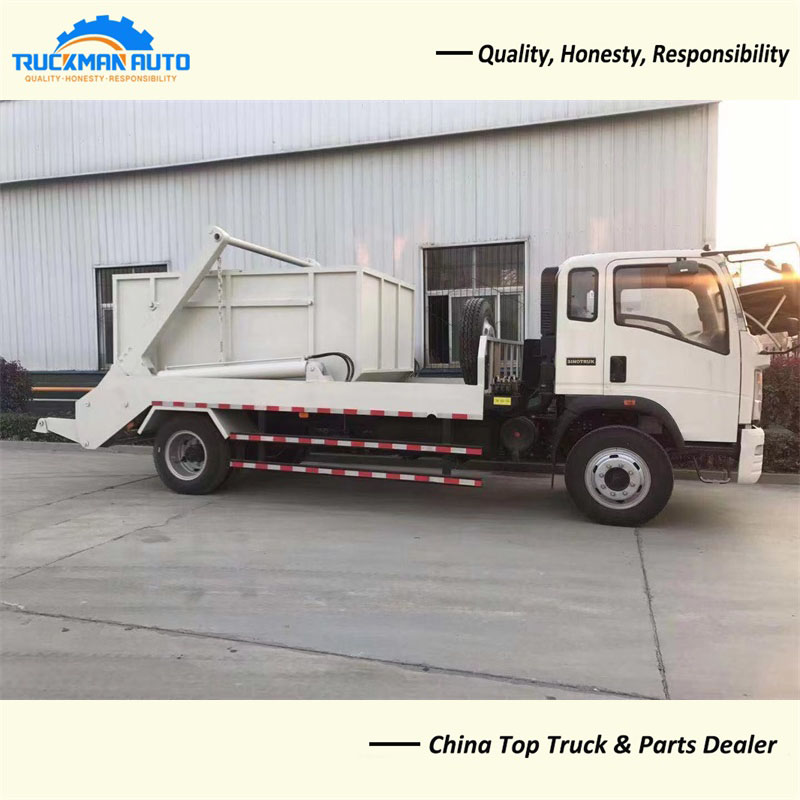

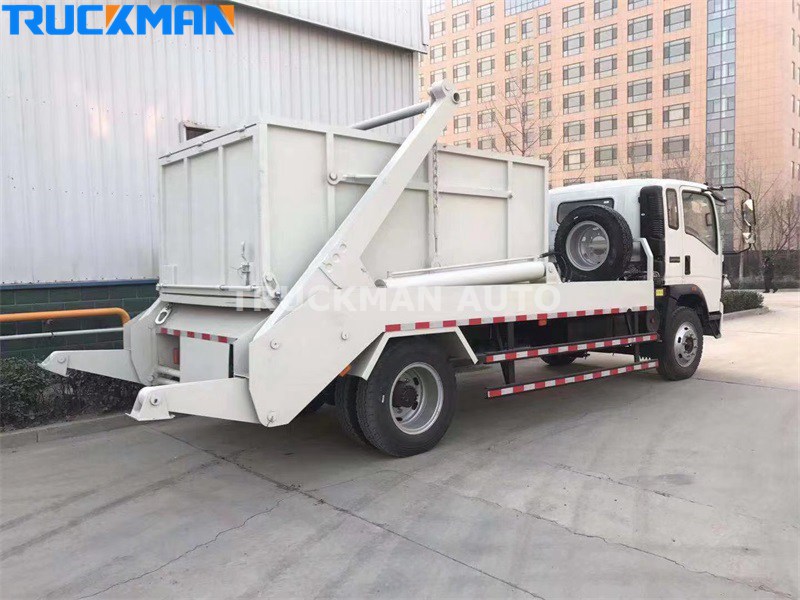

4x2 SINOTRUK HOWO 5 Cubic Meters Swing Arm Garbage Truck

About 4x2 SINOTRUK HOWO 5 Cubic Meters Swing Arm Garbage Truck

The SINOTRUK swing arm garbage truck with self-unloading function, hydraulic operation, the garbage bucket can be hoisted up and down, the swing arm of a working cycle time: 60 S. The vehicle is characterized by the separation of the cargo bucket and the body, can realize a vehicle and multiple cargo bucket joint operation, cyclic transportation, and fully improve the transport capacity of the vehicle, especially suitable for short-distance transportation, such as sanitation departments of the town of garbage cleanup, transportation, and so on.

4x2 SINOTRUK HOWO 5 Cubic Meters Swing Arm Garbage Truck Specification

Product Name: 4x2 SINOTRUK HOWO 5 Cubic Meters Swing Arm Garbage Truck

Application: Garbage hauling

Engine: WEICHAI, 140HP

Transmission: 6 forwards and 1 reverse

Cabin: with one bed, A/C

Tire: 7.50R16LT ,6+1 pcs

Color: optional

Dimensions: 6760x2190x2540mm

4x2 SINOTRUK HOWO 5 Cubic Meters Swing Arm Garbage Truck only for your reference, we can manufacture other Garbage Truck basic your request.

4x2 SINOTRUK HOWO 5 Cubic Meters Swing Arm Garbage Truck Cargo Box

The 5 Cubic Meters garbage truck can is a pit-type garbage can: square in shape with a lid on top, it can be placed in the pit to collect household waste. There are also ground type garbage cans: boat shaped, sealed at the bottom to hold sewage, mud, etc. without dripping. There are trapezoidal hopper, boat-shaped hopper, square hopper, sealed hopper to choose from. The garbage cans are made of high-quality carbon steel, anti-corrosion and anti-rust, with strong load-bearing capacity and long service life. We can customize according to customer's needs.

4x2 SINOTRUK HOWO 5 Cubic Meters Swing Arm Garbage Truck Hydraulic System

The hydraulic system of the 4x2 HOWO garbage truck consists of take-off box, oil pump, manual multi-way reversing valve, one-way hydraulic lock, balance valve, oil pipe, oil tank and so on. The whole system is powered by the gearbox and pickup box, and the manual multi-way valve operates the outrigger cylinder and swing arm cylinder for telescopic movement. This system oil pump discharge size can be regulated by the manual throttle under the car, manual directional valve handle control valve rod stroke to control the cylinder piston rod movement speed.
