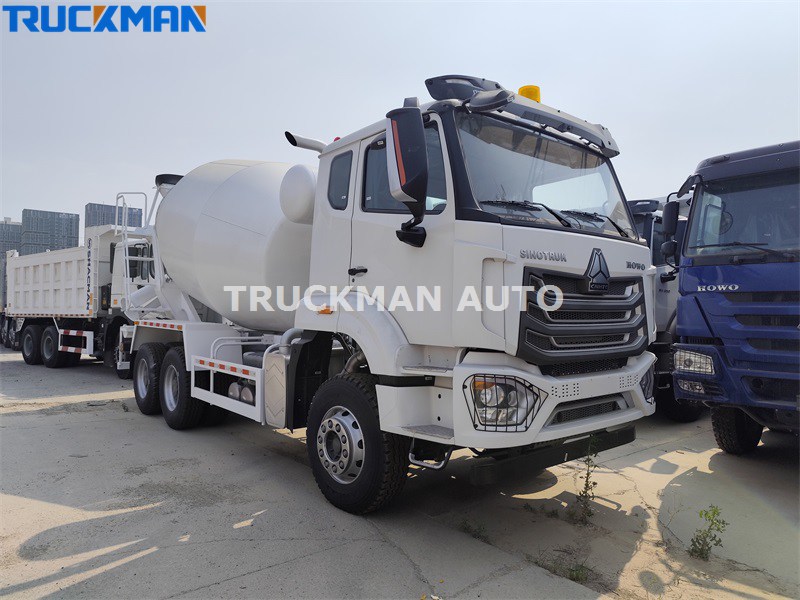

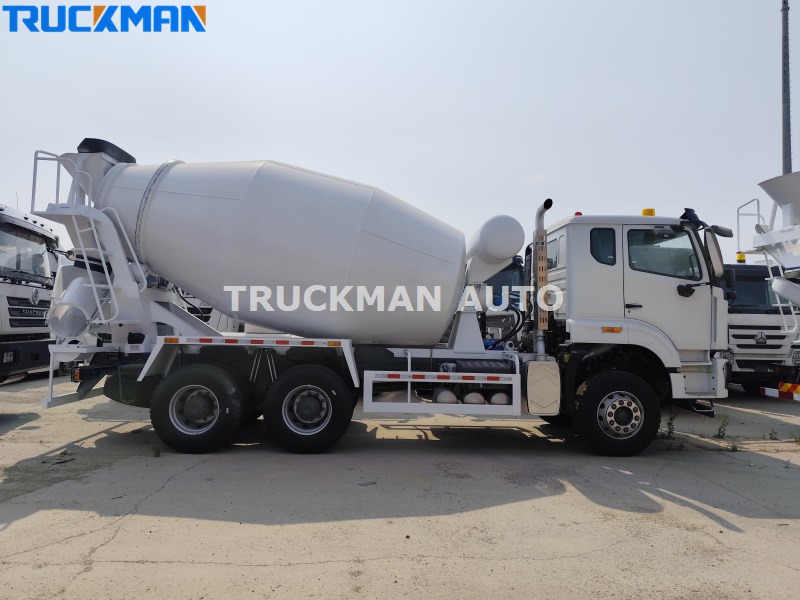

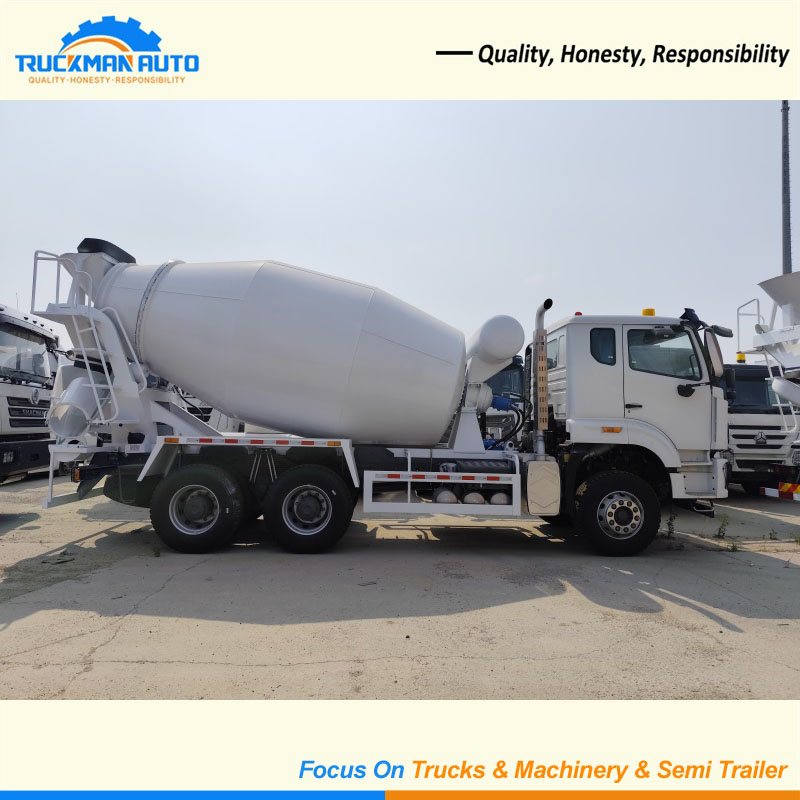

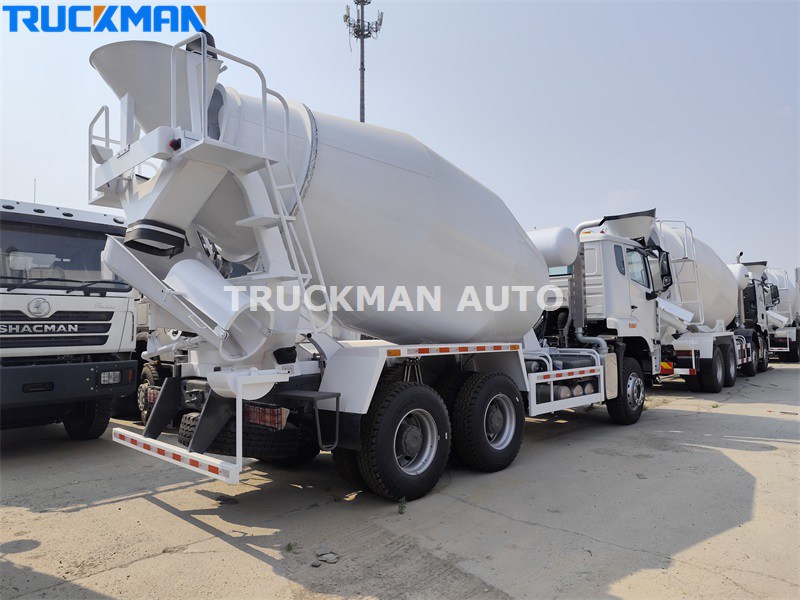

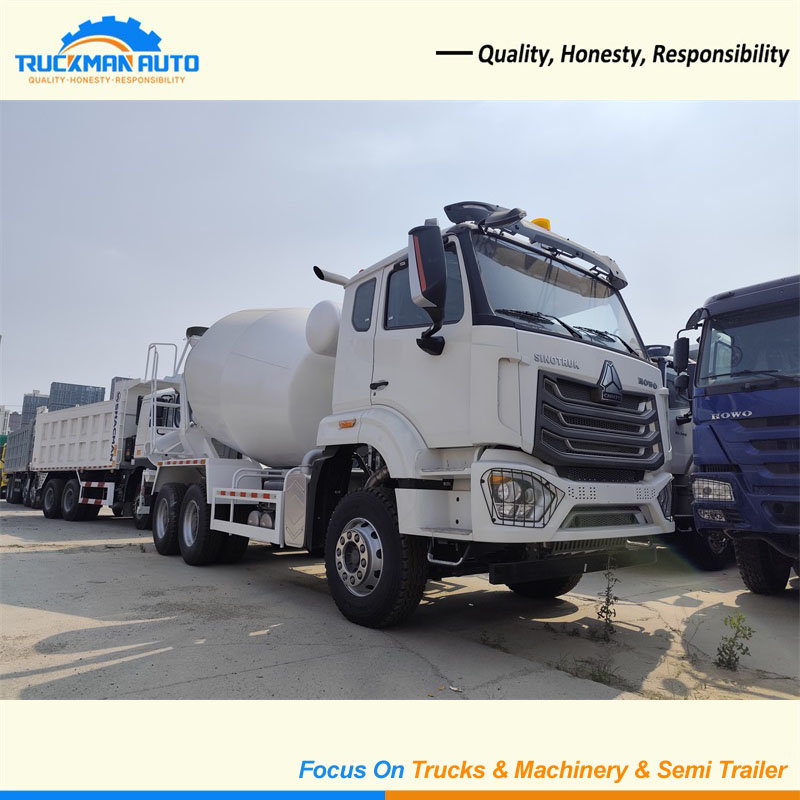

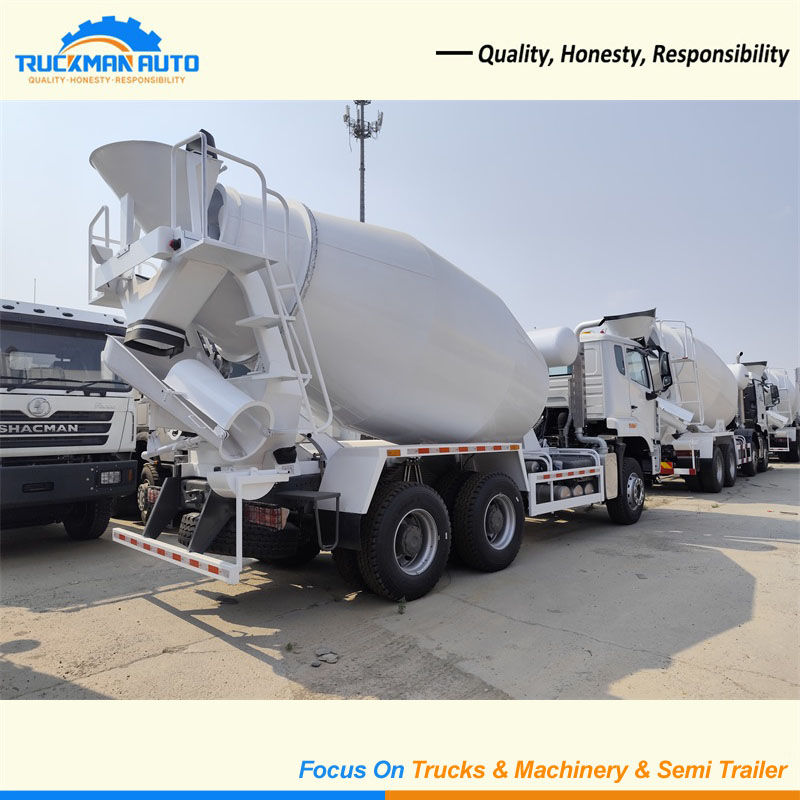

8m3 Mixer Truck SINOTRUK HOWO NX 380HP Concrete Mixer Truck

About 8m3 Mixer Truck SINOTRUK HOWO NX 380HP Concrete Mixer Truck

HOWO NX 380HP concrete mixer truck is equipped with WEICHAI brand WP10 series diesel engine, which can provide 380 horsepower for the whole vehicle. It is powerful and can easily cope with various road conditions and load requirements. HOWO NX 380HP concrete mixer truck is also equipped with HW series gearbox and engineering special axle, which is highly efficient, reasonable power chain, high transmission efficiency, can fully transmit the power of the engine to the wheels, and improve the driving performance of the vehicle.

8m3 Mixer Truck SINOTRUK HOWO NX 380HP Concrete Mixer Truck

Engine: WP10.380E22, 380HP. Euro 2

Cabin: H77L, with one bed, A/C

Gearbox: HW19710, 10 forward and 2 reverse gear

Drive Axle: MCX16ZG, 2x16000kg

Tire: 315/80R22.5, tubeless tyre, 10+1 pcs

Fuel Tank:300L

Dimension: 8700x2580x3730mm

8m3 Mixer Truck SINOTRUK HOWO NX 380HP Concrete Mixer Truck only for your reference, we can manufacture other model concrete mixer truck basic your request.

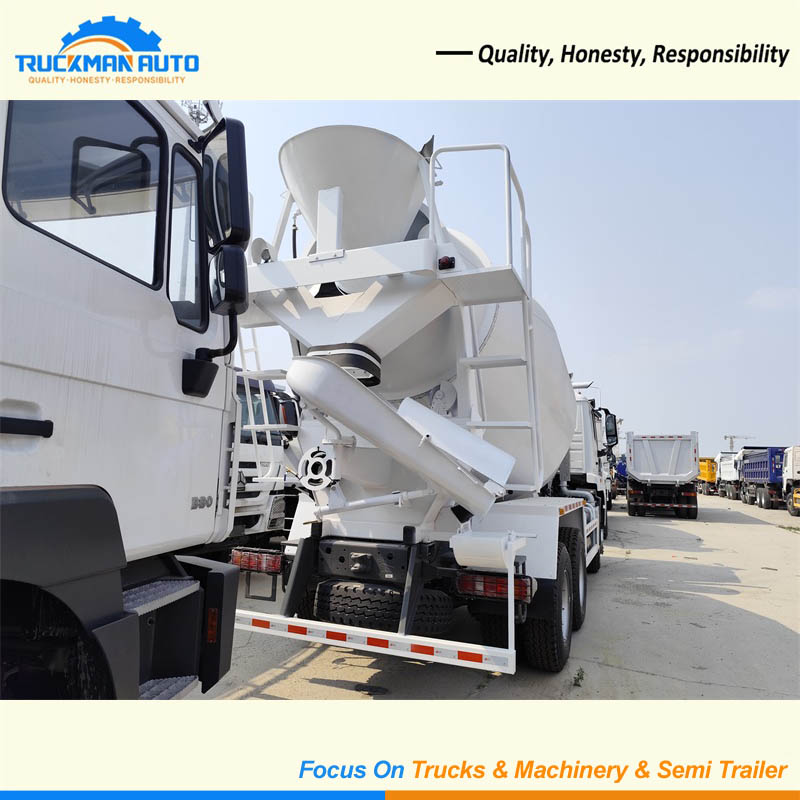

8m3 Mixer Truck SINOTRUK HOWO NX 380HP Concrete Mixer Truck Tank Body

The tank and head of HOWO NX concrete mixer truck are made of high-strength steel plates, which have high strength and wear resistance, can bear the weight of concrete and the friction during mixing, and extend the service life of the tank. The spiral blades of HOWO NX concrete mixer truck adopt variable-angle double-logarithmic spiral blades. This design allows the concrete to flow more smoothly in the tank, reduce segregation and accumulation, and improve mixing uniformity.

8m3 Mixer Truck SINOTRUK HOWO NX 380HP Concrete Mixer Truck Advantages

HOWO concrete mixer truck uses American Eaton hydraulic pumps and hydraulic motors, and Italian PMP reducers. Imported brands of hydraulic pumps, hydraulic motors and reducers use advanced manufacturing processes and materials, with precise internal structures and high matching accuracy between components, which can ensure smooth operation and reduce vibration and noise during operation. American Eaton hydraulic pumps and hydraulic motors, whose internal gears, plungers and other components have been processed with high precision and strictly tested, have excellent stability during operation, and can effectively reduce the impact and wear on other parts of the mixer truck.The hydraulic system of Italy's PMP has been widely used in the field of mixer trucks for its excellent reliability and stability, and can adapt to various harsh working environments and working conditions.
