8X4 SINOTRUK HOWO 430HP Cargo Truck With Mounted Crane

About 8X4 SINOTRUK HOWO 430HP Cargo Truck With Mounted Crane

The truck-mounted crane is installed on the chassis of the special truck, with self-loading and self-unloading cargo capacity, and at the same time, it has the function of emergency rescue and lifting heavy objects. The SINOTRUK cargo truck adopts a new type of high-efficiency hydraulic system with good micro-movement to ensure smooth and efficient operation, and can realize compound action. It is equipped with warning horn, working light and radiator as standard, adapting to various environments.

8X4 SINOTRUK HOWO 430HP Cargo Truck With Mounted Crane Specification

Product Name: 8X4 SINOTRUK HOWO 430HP Cargo Truck With Mounted Crane

Application: Logistics and transportation

Engine: WP12.430E201, 430HP. Euro 2

Cabin: With one bed, A/C

Gearbox: 12 forward and 2 reverse gear

Tire: 12.00R20 , 12+1 pcs

Color: Optional

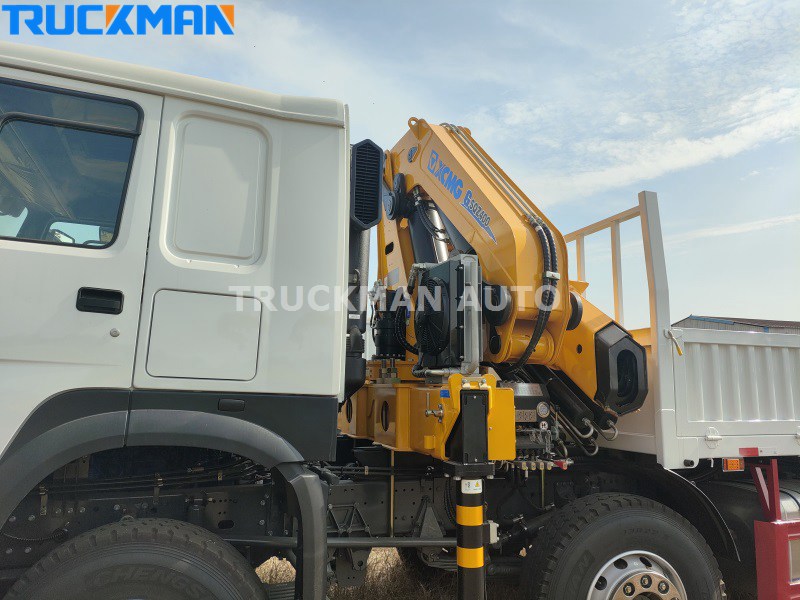

Crane: GSQZ400, folding arm

8X4 SINOTRUK HOWO 430HP Cargo Truck With Mounted Crane only for your reference, we can manufacture other Cargo Truck With Mounted Crane basic your request.

8X4 SINOTRUK HOWO 430HP Cargo Truck With Mounted Crane Cargo Box

The cargo box of the SINOTRUK truck with mounted crane adopts three-layer body equipped with partially strengthened connecting plate and four horse bolts, which is powerful; the crane installation position is strengthened, and the outrigger installation position is reserved; the frame partially strengthens the vertical plate, and it is more convenient to connect with the sub-beam frame. Reasonably reserved holes for top-loading connection to avoid interference with top-loading connectors and maximize the adaptability of top-loading.

How To Maintain The Cargo Truck With Mounted Crane?

Daily inspection, usually the operator in the operation is to see, listen and other ways to check the judgment. Generally is the power supply, manipulator, wire rope, hooks and other point inspection. Daily inspection can reduce the failure rate of 50%.

Monthly inspection, mainly for a variety of lubrication and fastening work. For example, the inspection and fastening of connecting parts; safety facilities, wearing parts, and the surface inspection of electrical equipment, carried out by mechanical maintenance personnel. A standard monthly inspection reduces the failure rate by another 40%.

Annual inspection, mainly for the replacement of equipment, adjust the maintenance work and overhaul transformation, this requires very professional knowledge and experience, need to be operated by professionals.
